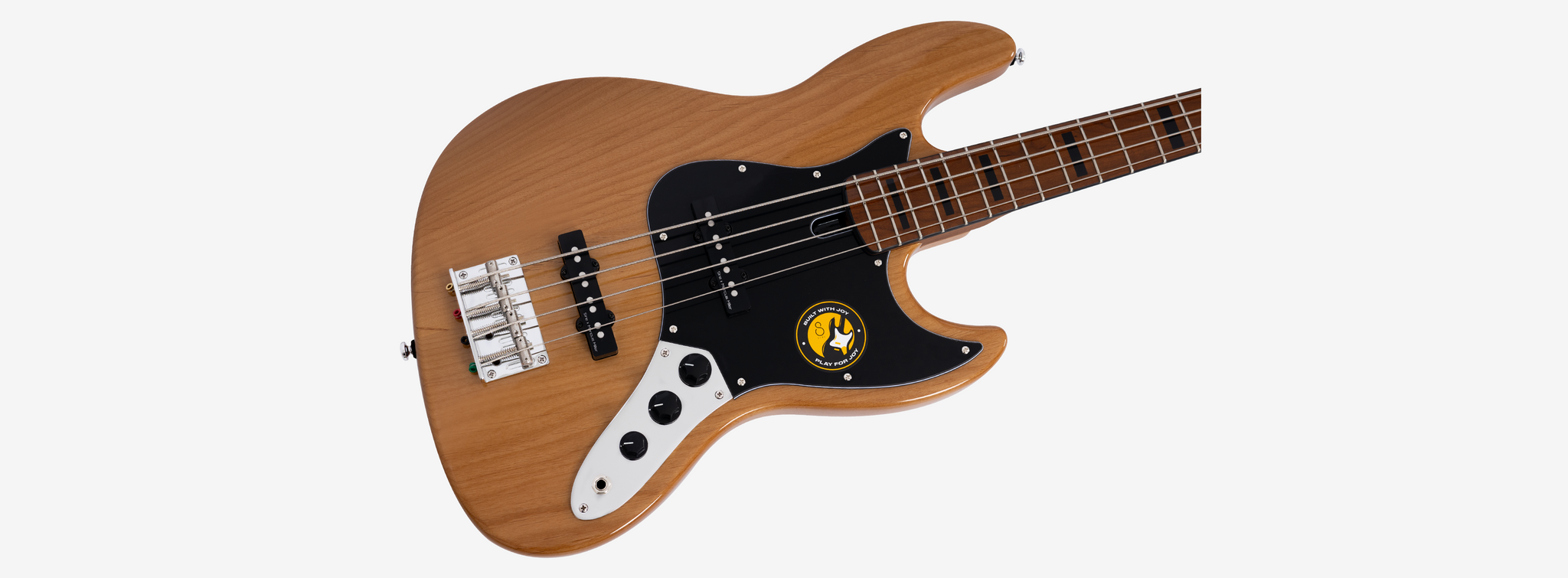

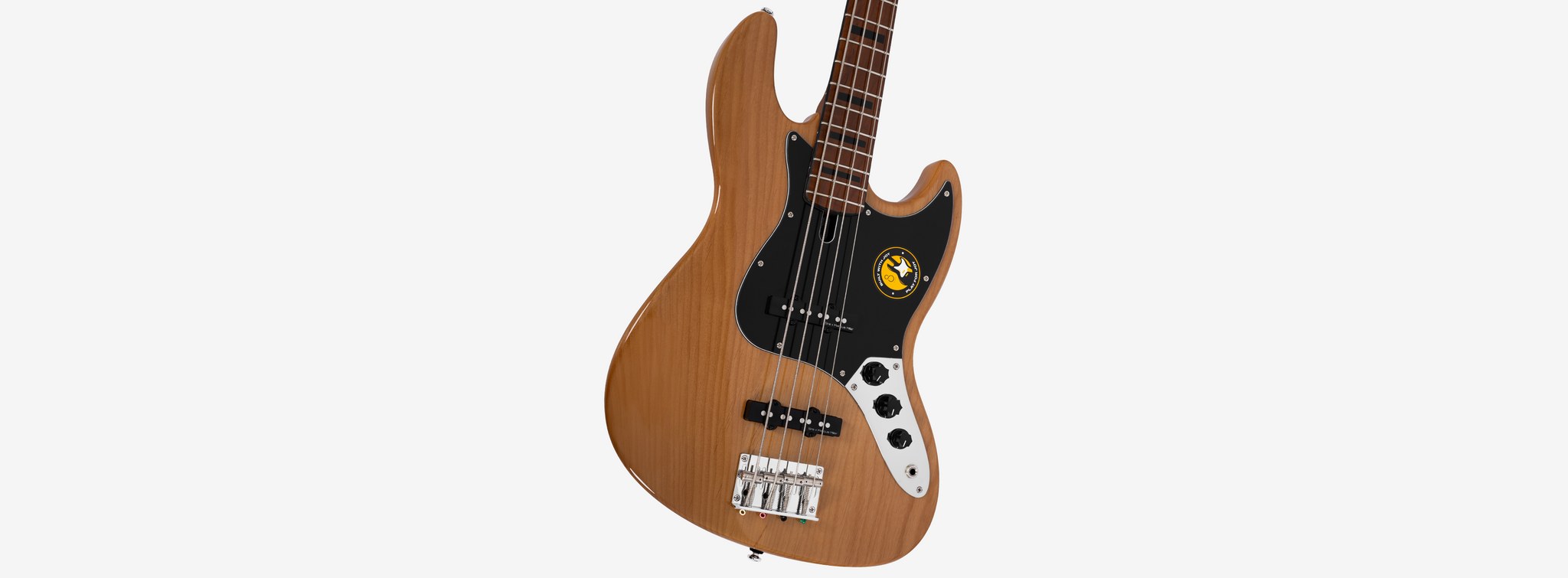

Color – Natural

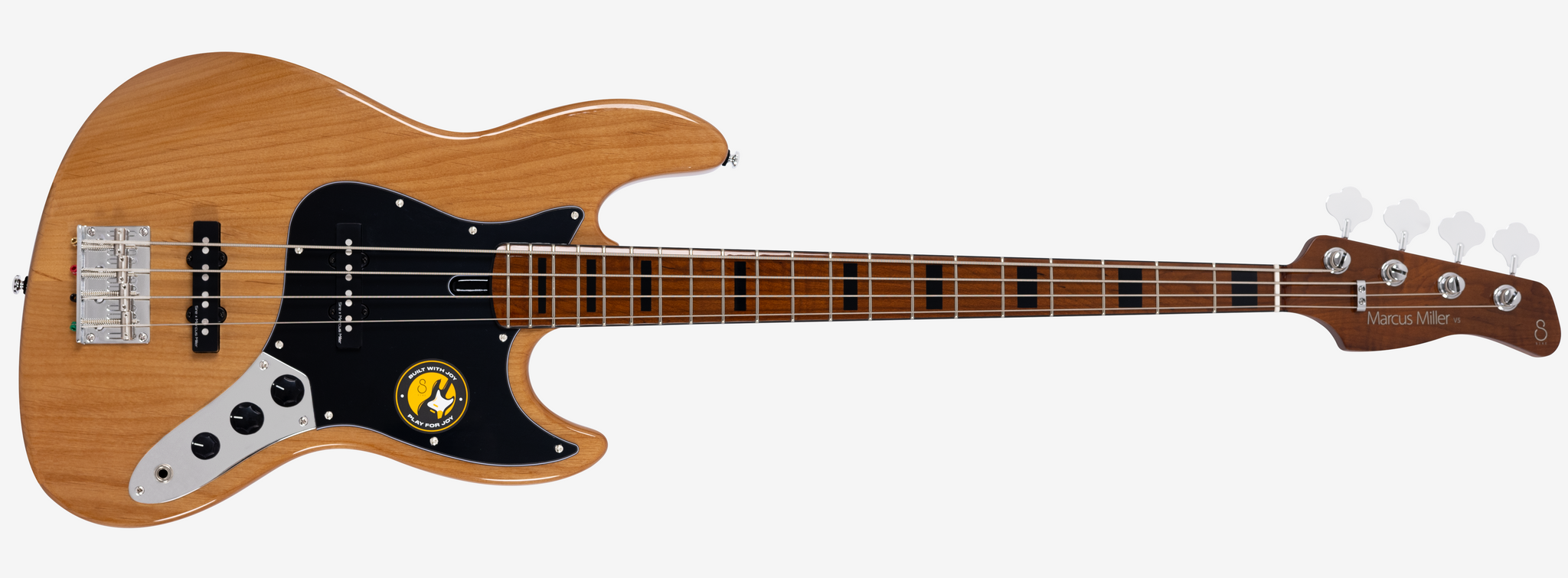

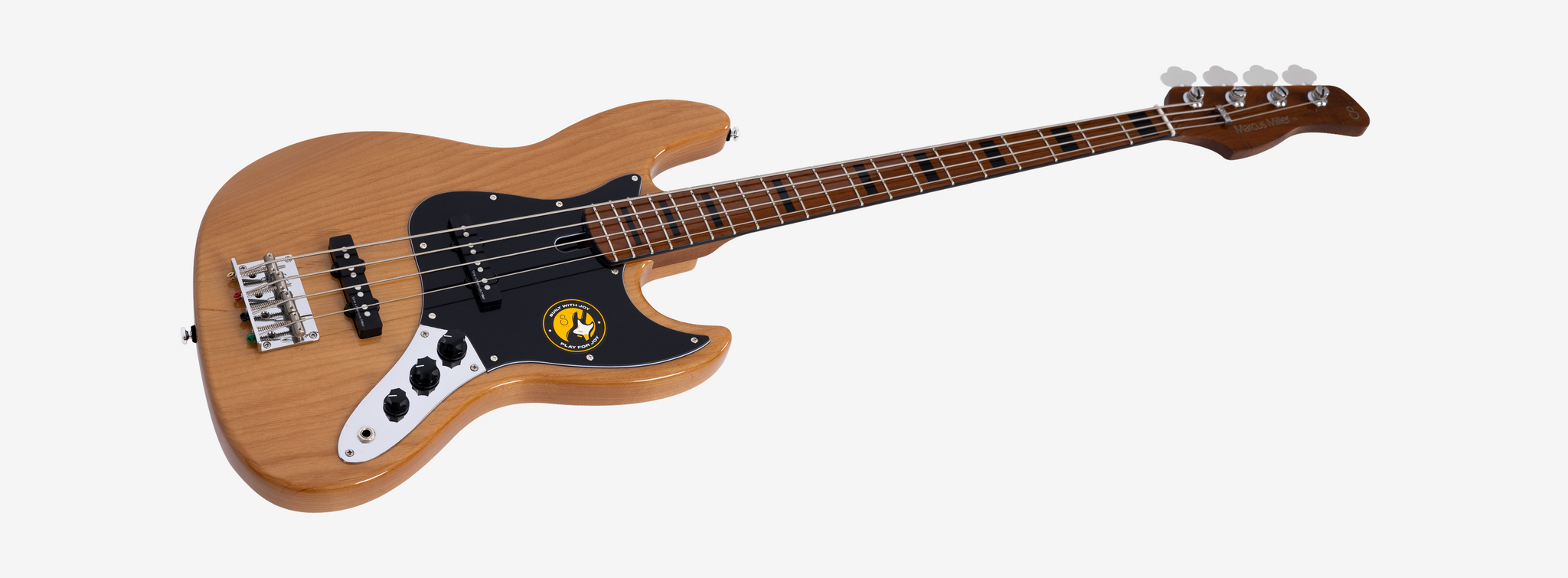

Sire Marcus Miller V5 4-String

$599.00
$599.00

A PASSIVE BASS FOR VINTAGE ENTHUSIASTS

The V5 is a true passive jazz bass loaded with vintage-inspired features in both tone and style. Designed for players who appreciate an authentic vintage feel, it offers the added advantage of a comfortable neck—all at an exceptional value.


ALL-VINTAGE BODY

Constructed with an alder body, a roasted maple neck featuring rolled fretboard edges, and equipped with the Marcus Vintage pickup set and bridge, this bass delivers an authentic vintage character.

ROASTED HARD MAPLE NECK

A distinctive quality of aged wood, achieved through the meticulous process known as torrefaction, in which the wood is carefully heat-treated to enhance its stability, resonance, and vintage-like tonal character.

SIMPLE PASSIVE CONTROLS

Enable players to easily shape and add their personal touch to the classic vintage jazz tone.

V5 CONTROL LAYOUT

1. Output Jack
 Connect the instrument cable to the output jack to send the signal from the instrument to an amplifier, audio interface, or other external equipment.
2. Master Tone
 Turn the knob one direction to reduce high frequencies for a warmer, darker tone.
 Turn the knob the opposite direction to keep more high frequencies for a brighter, clearer tone.
3. Volume for Bridge Pickup
  This knob controls the output level of the bridge pickup.
  Turn the knob up to increase the bridge pickup volume.
  Turn it down to decrease the bridge pickup volume.
  When turned fully down, the bridge pickup will be muted.
4. Volume for Neck Pickup
 This knob controls the output level of the neck pickup.
  Turn the knob up to increase the neck pickup volume.
  Turn it down to decrease the neck pickup volume.
  When turned fully down, the neck pickup will be muted.
Basic Use
  For a balanced sound, turn both pickup volume knobs fully up.
  To emphasize a brighter and tighter tone, increase the Bridge
  Pickup Volume or reduce the Neck Pickup Volume.
  To emphasize a warmer and fuller tone, increase the Neck Pickup Volume or reduce the Bridge Pickup Volume.



BODY

Body Material: North American Alder
Body Shape: New Marcus Miller Jazz Type

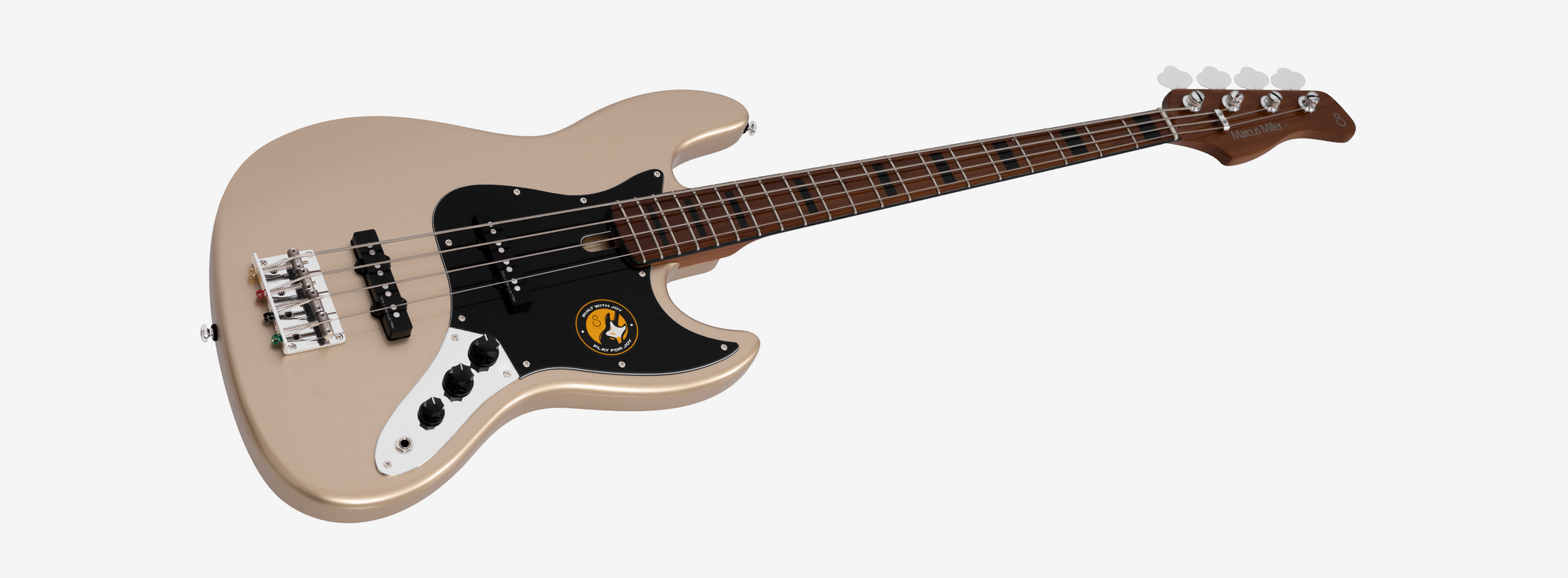

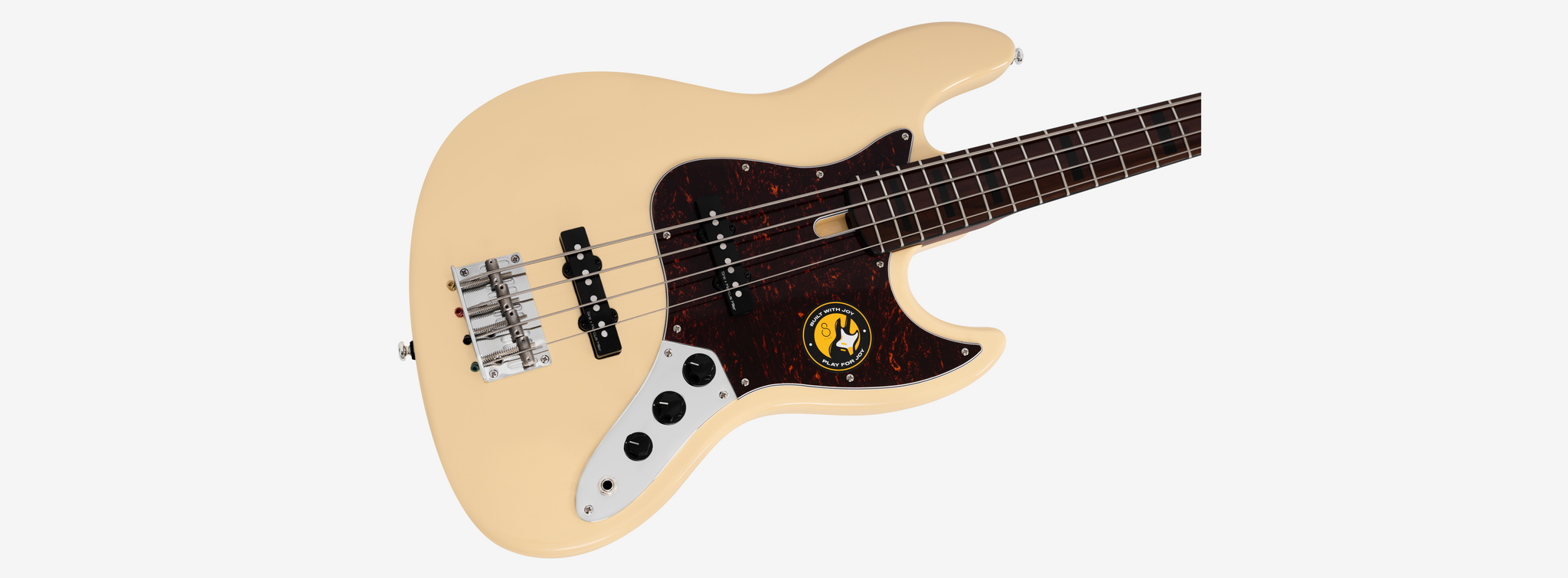

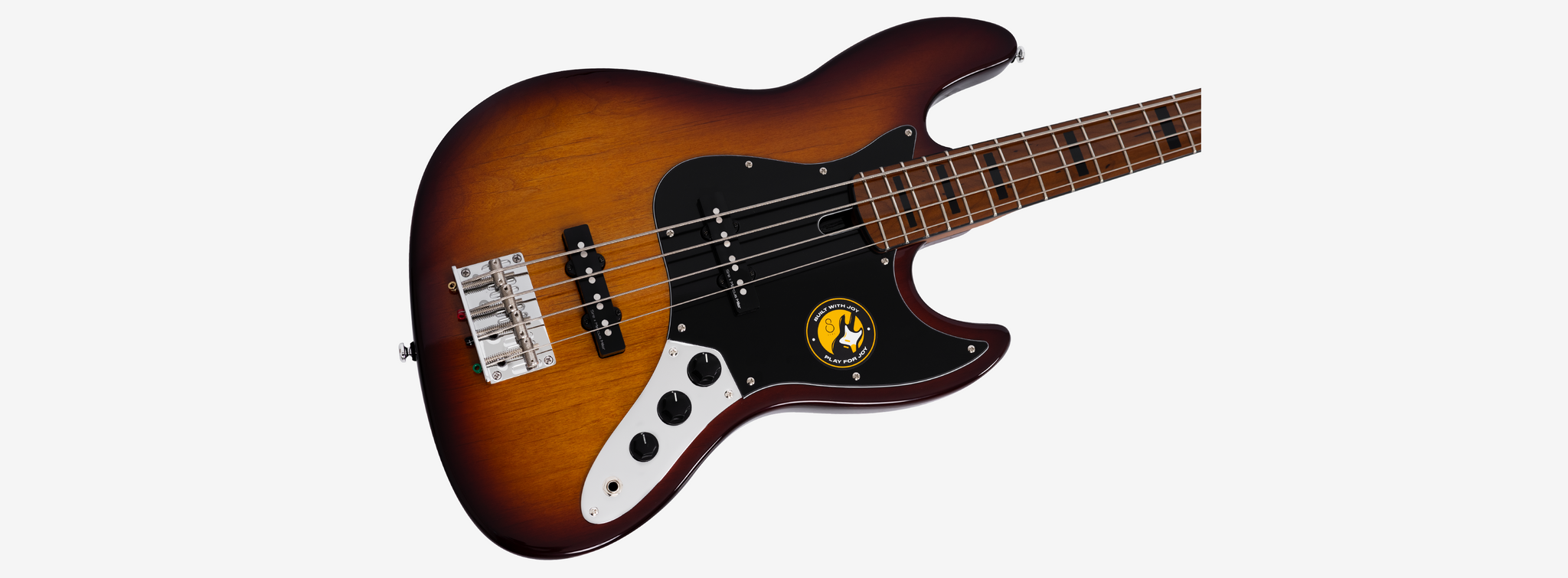

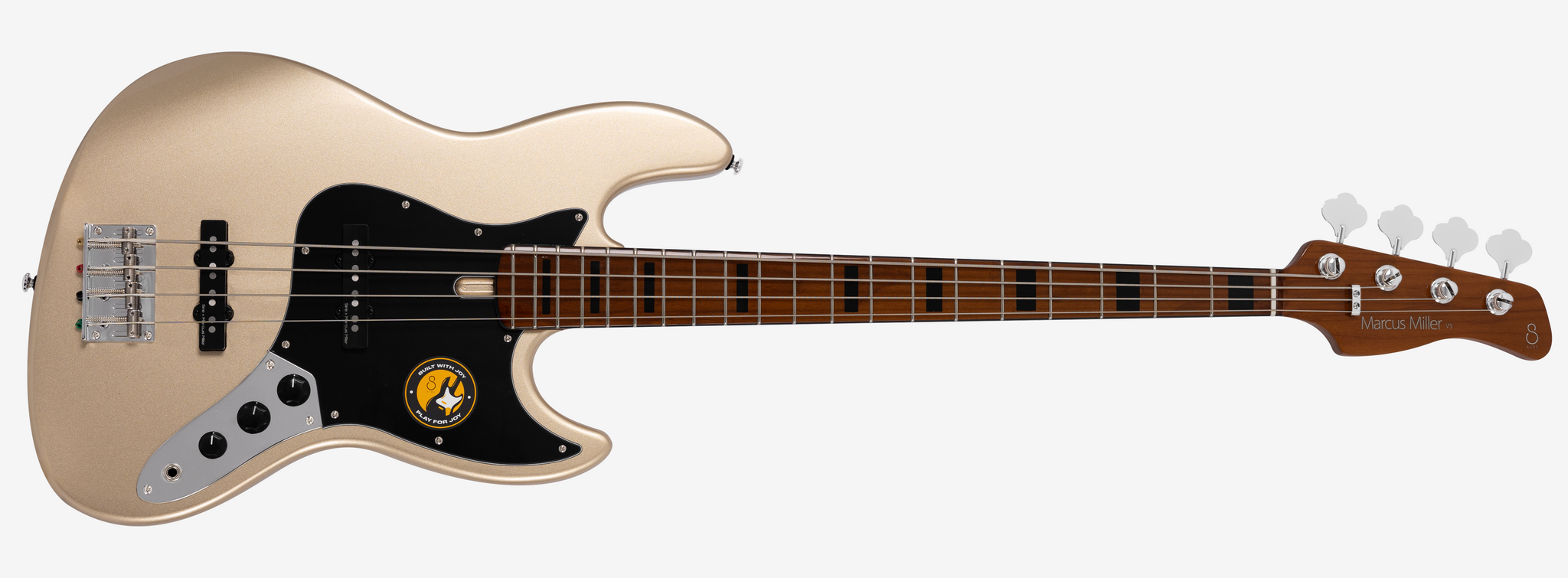

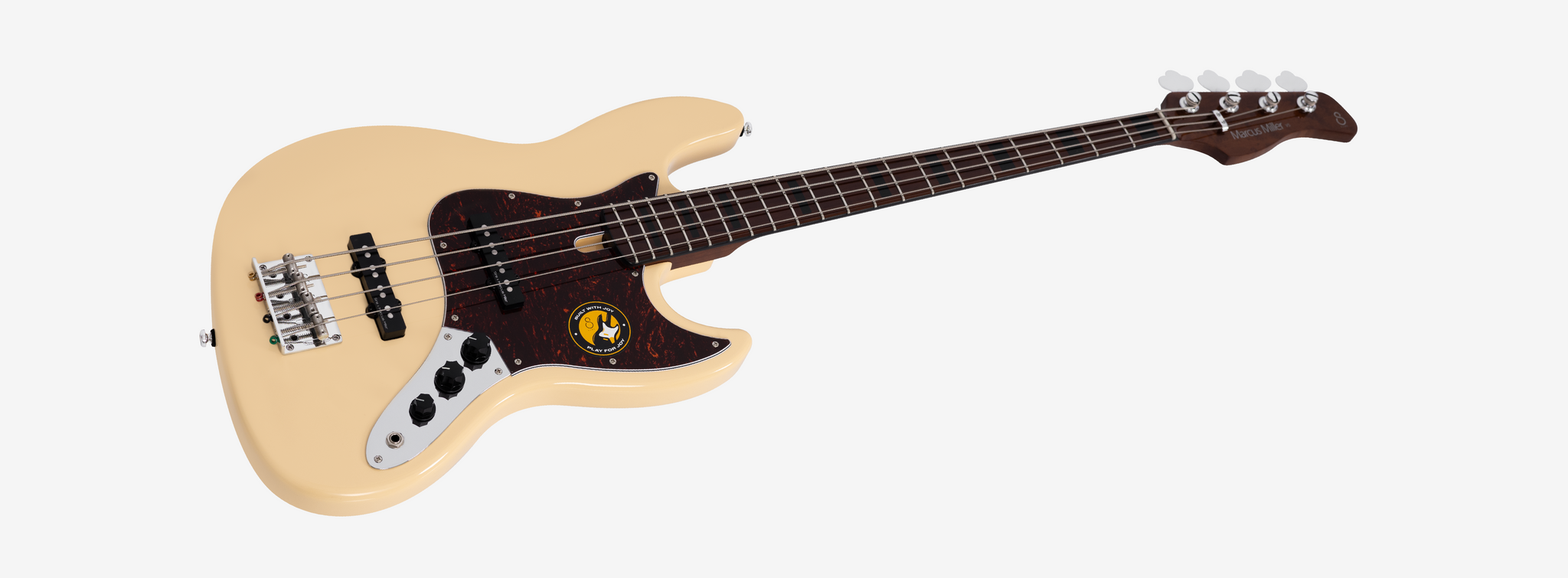

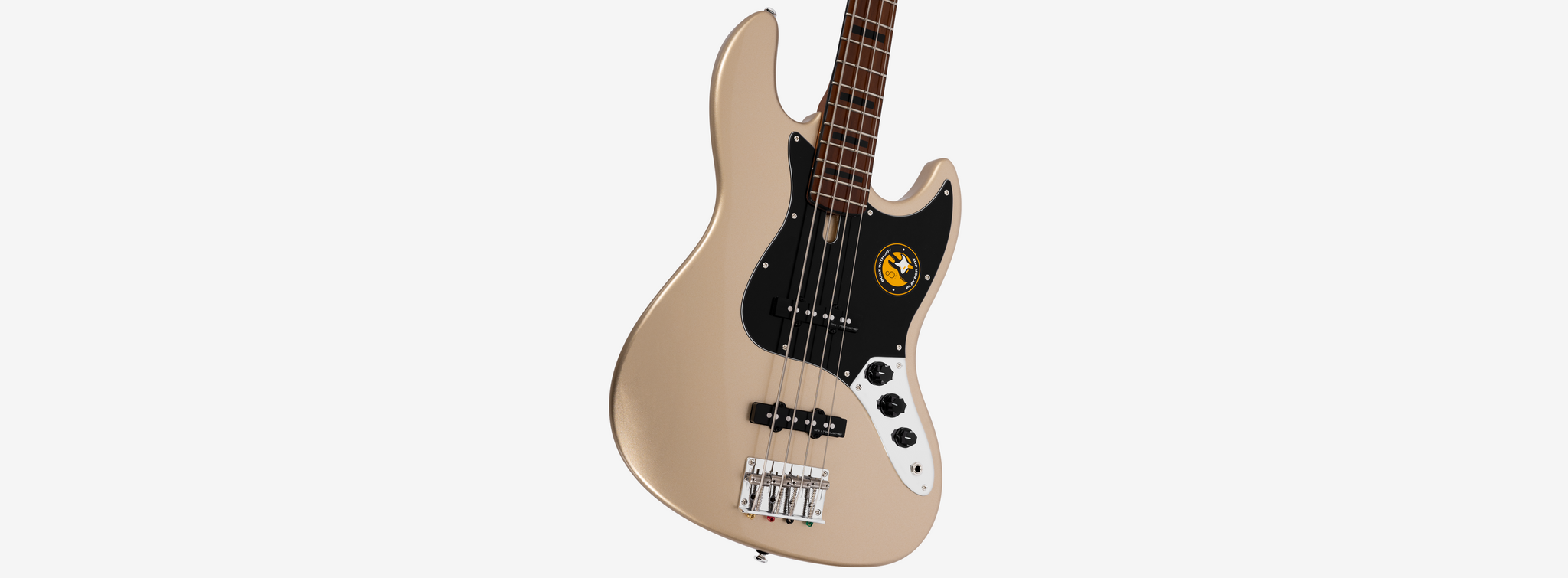

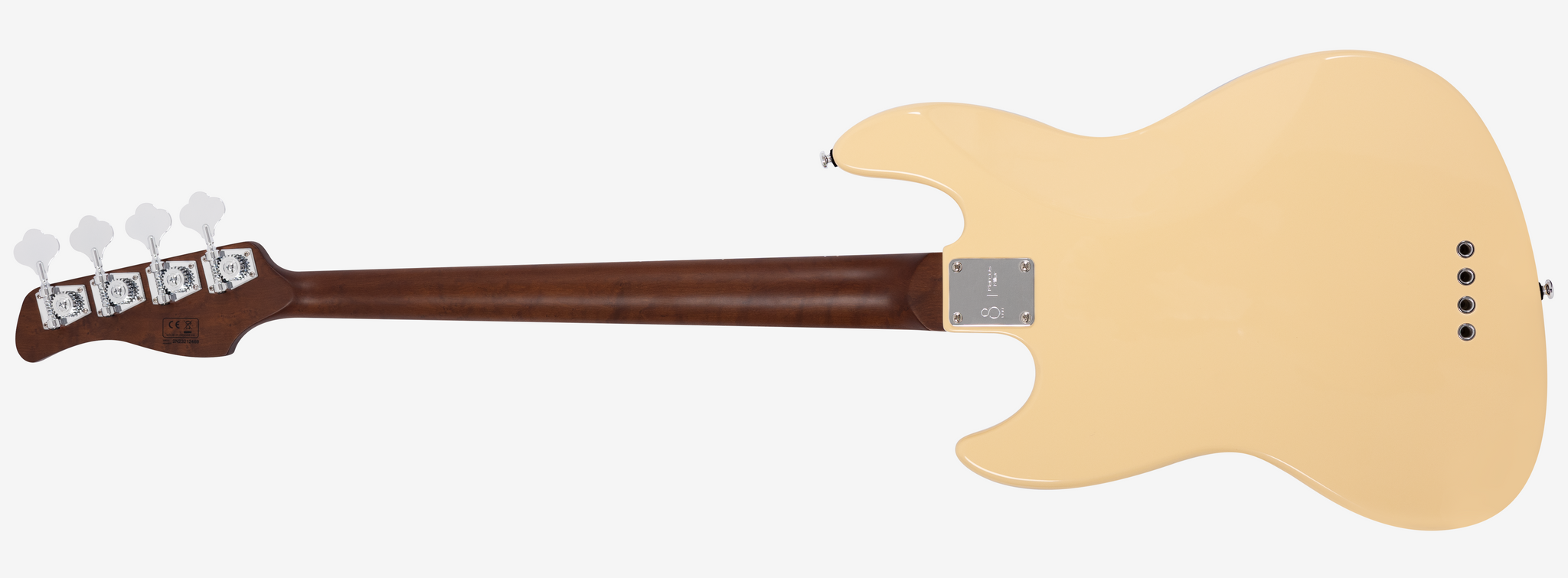

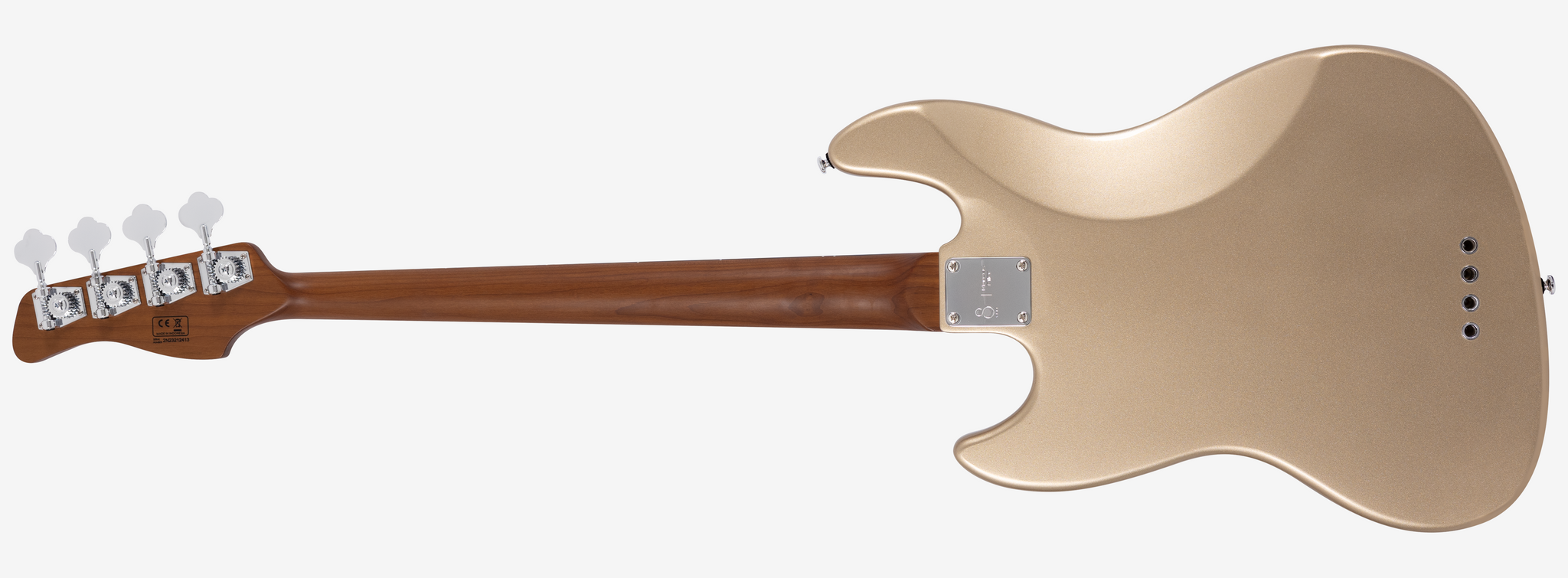

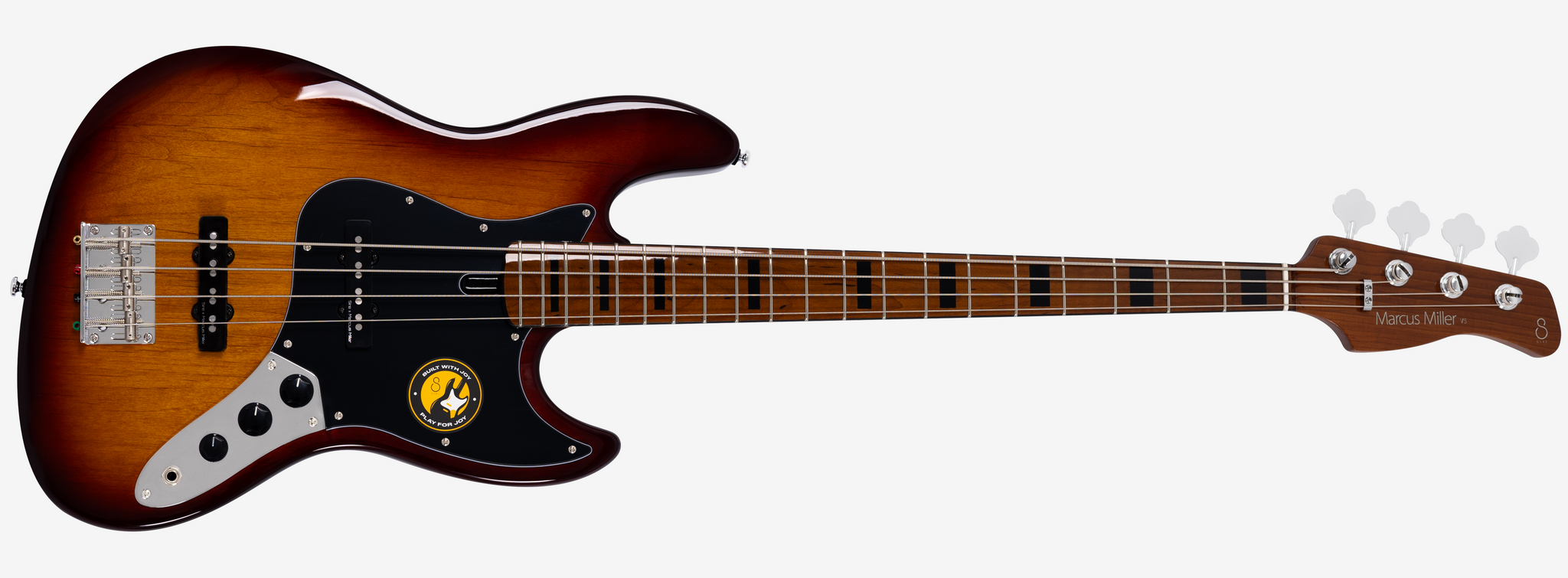

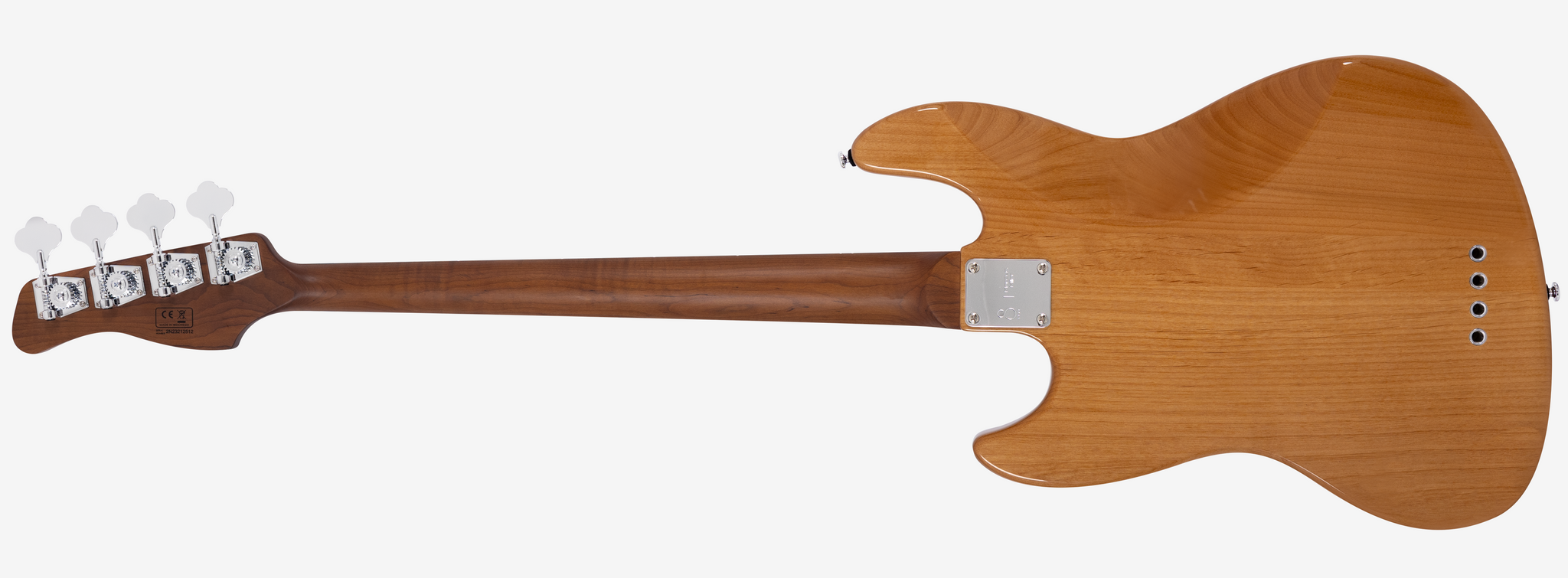

Body Color: NT(Natural), TS(Tobacco Sunburst), VWH(Vintage White), CGM(Champagne Gold Metallic), CAR(Candy Apple Red), TP(Tide Pool), BK(Black)

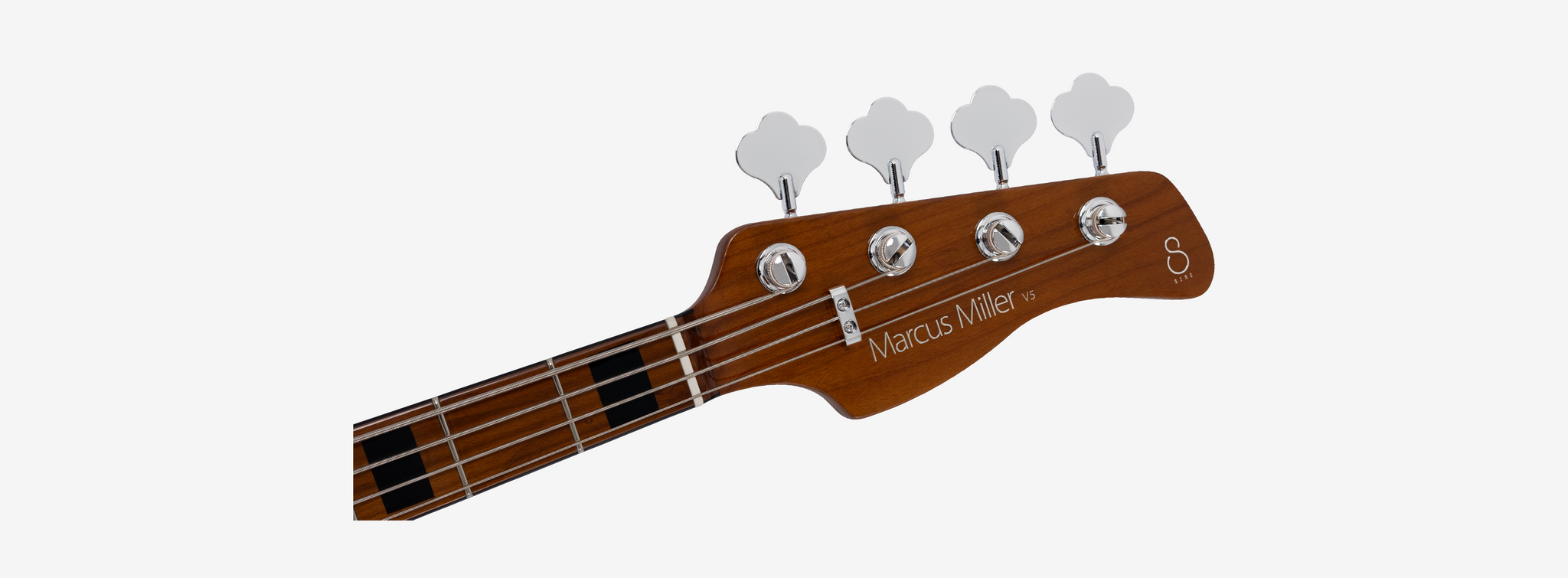

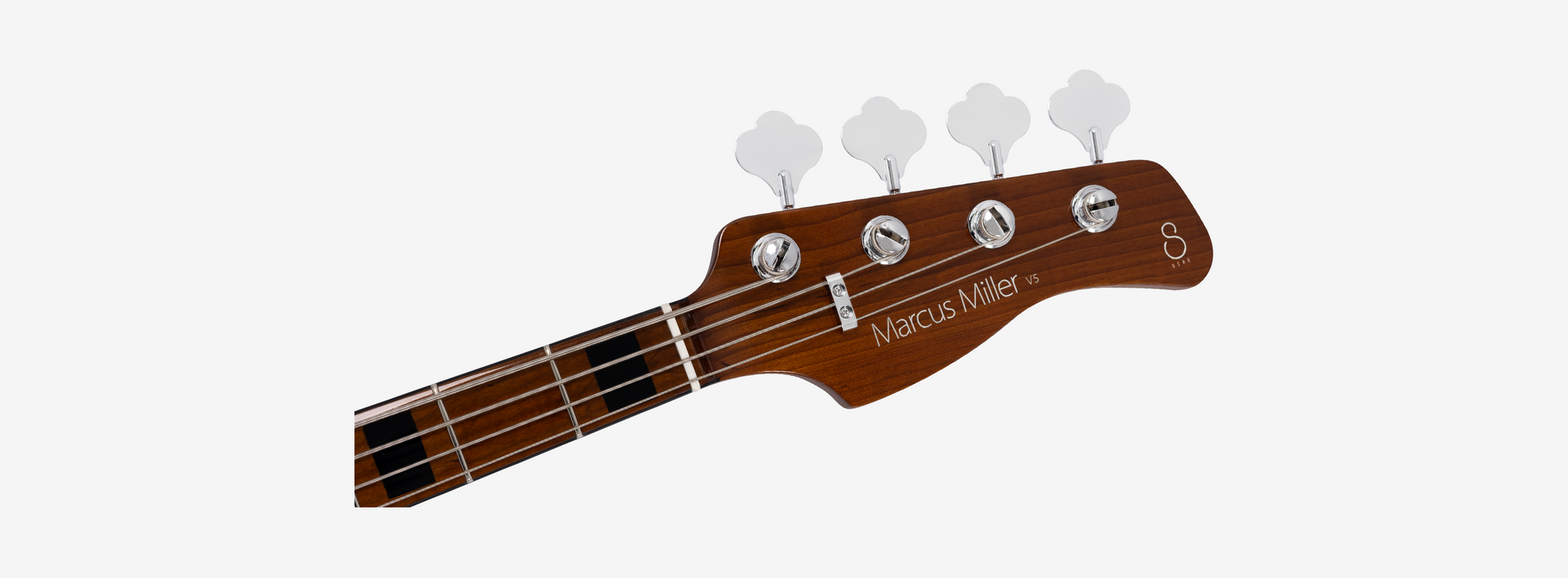

NECK

Neck Material: Roasted Hard Maple
Neck Shape: C-Shape
Scale: 34"
Neck Joint: 4 Bolt Steel Square Plate
Fingerboard Material: Roasted Hard Maple, Edgeless™ (Rolled Fretboard Edges)
Fingerboard Radius: 9.5"
Frets: 2.4mm Medium
String Nut: 4 String - Bone Nut 38mm width
Binding: 1 Ply Black
Inlay: Black Square Block




ELECTRONICS

Pickups: Marcus Vintage-J Revolution Set
Preamp: Passive Volume & Tone Control
Controls: Volume(Neck PU), Volume(Bridge PU), Tone(Master)




HARDWARE

Knobs: BK Jazz Knobs
Bridge: Marcus Miller Vintage-S
String Spacing: 20mm

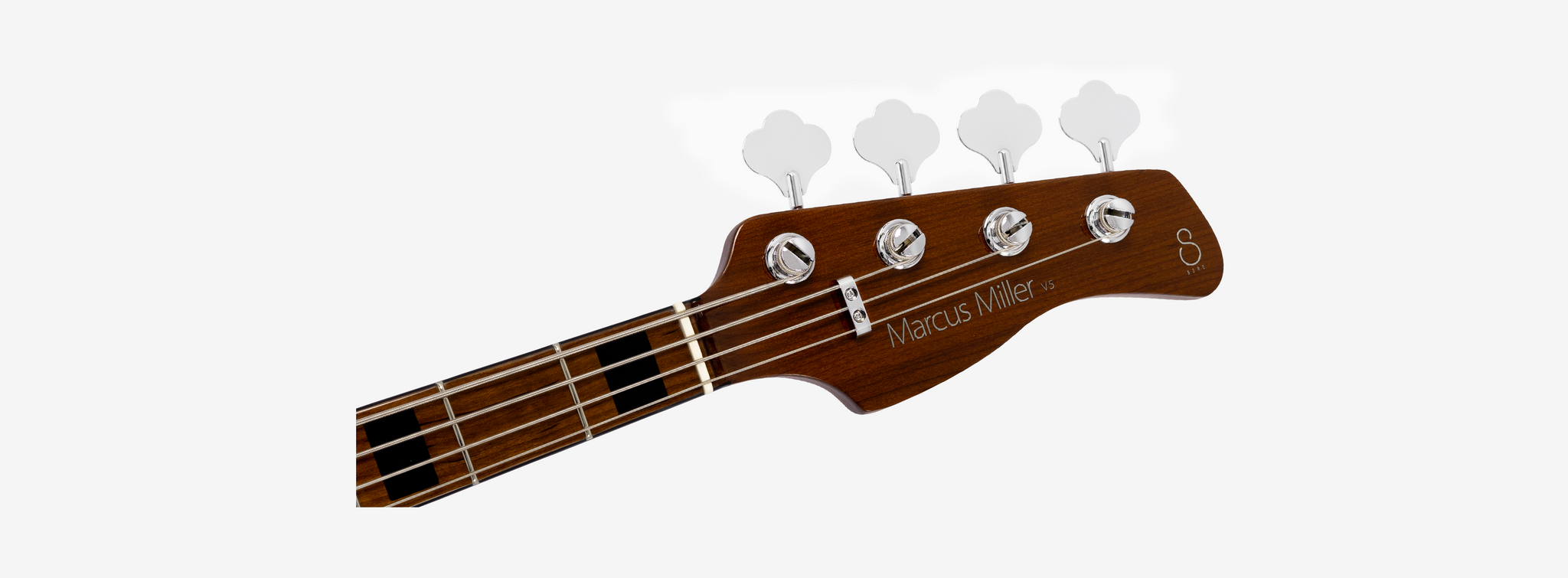

Tuning Gear: Premium Open-Gear
Hardware Finish: Chrome
Pickguard: Black 3 Ply
