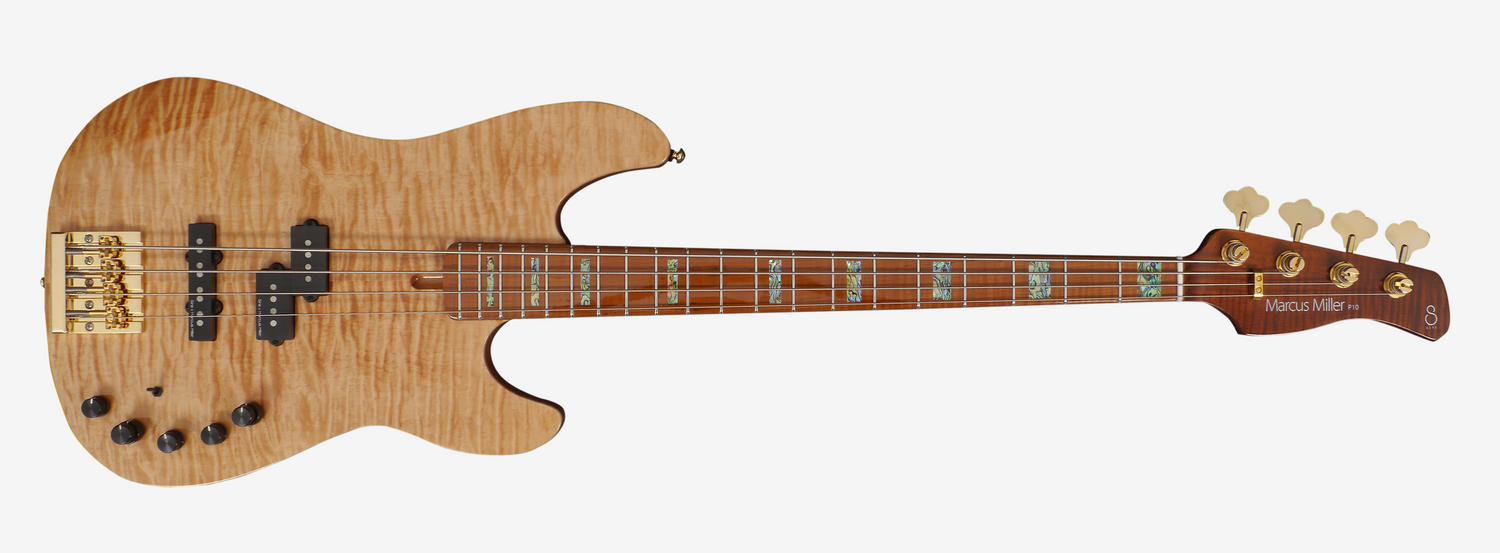

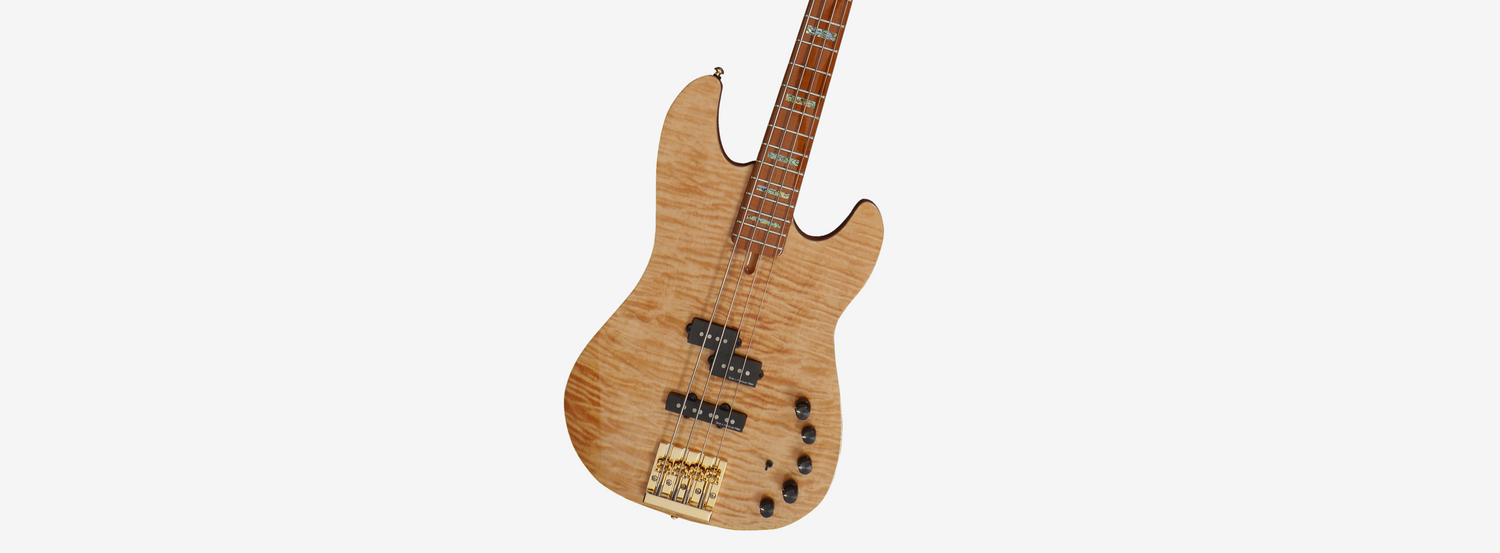

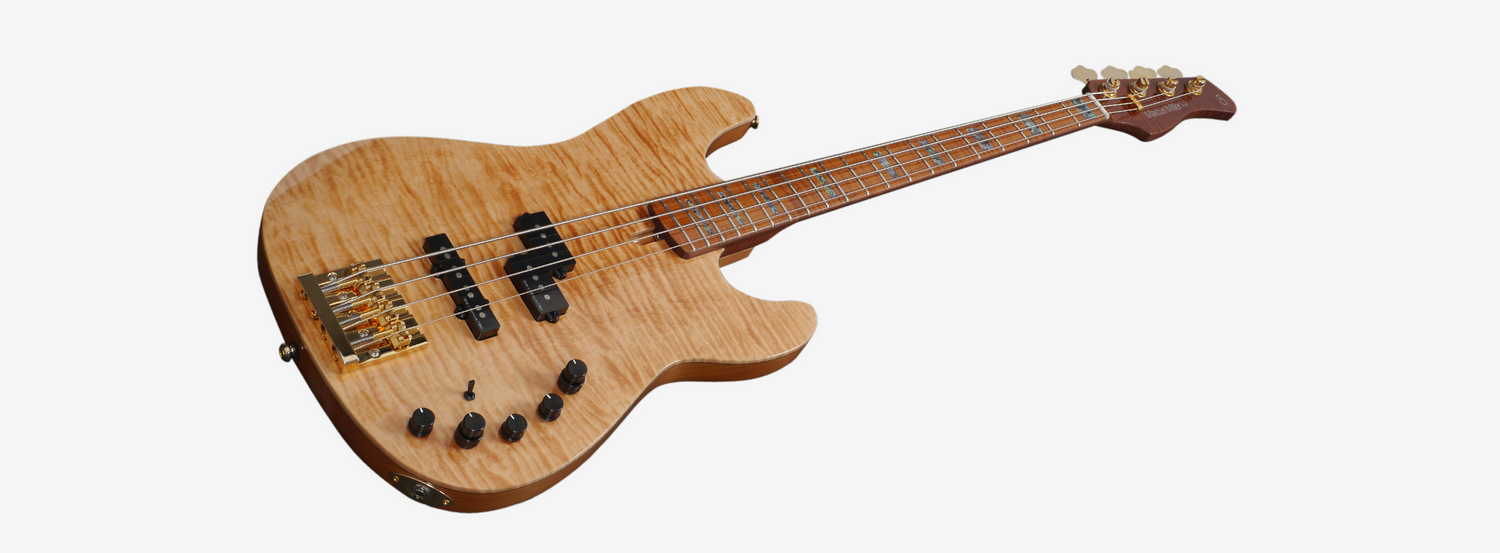

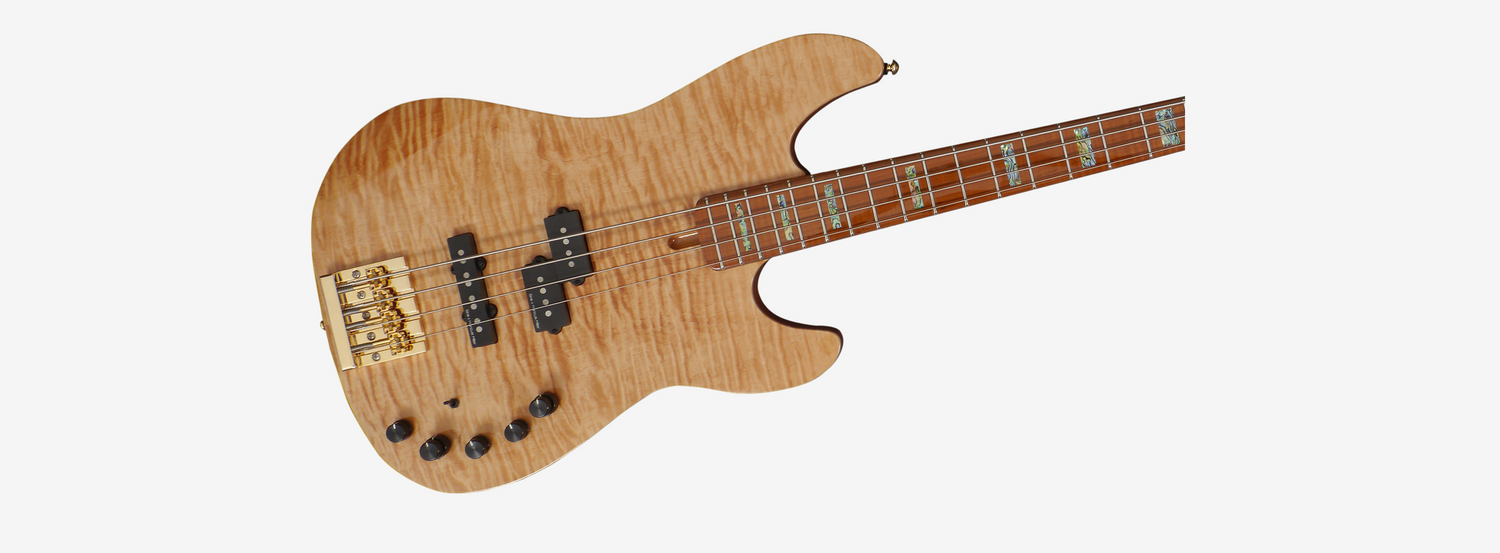

Color – Natural

Sire Marcus Miller P10dx 4-String FL

$1,799.00
$1,799.00

THE NEW PREMIUM MARCUS MILLER PJ BASS

The combination of the P+J in the P series got even more leveled up now with the new electronic appointments for better playing experience. Added with top-notch features, most especially the neck profile, full Hipshot USA features, and the Marcus-signature hardware, the P10dx is ready for an outstanding performance. It comes with Sire official hard case.


MARCUS PREMIUM PJ REVOLUTION SET

Showcasing higher resolution and expertly crafted in collaboration with Marcus Miller, these pickups deliver a distinctive hybrid of P and J tonal qualities. Embrace a spectrum of tones that transcend conventional boundaries, providing a versatile and dynamic range for your musical expression.

HIPSHOT KICKASS™ BASS BRIDGE

A Marcus Miller-preferred bridge usually found in bass guitars from higher price ranges. It features adjustable string spacing and replacement stainless steel saddle inserts to emphasize overtones and treble frequencies and recessed string ball holes for a sleeker, sexier look.

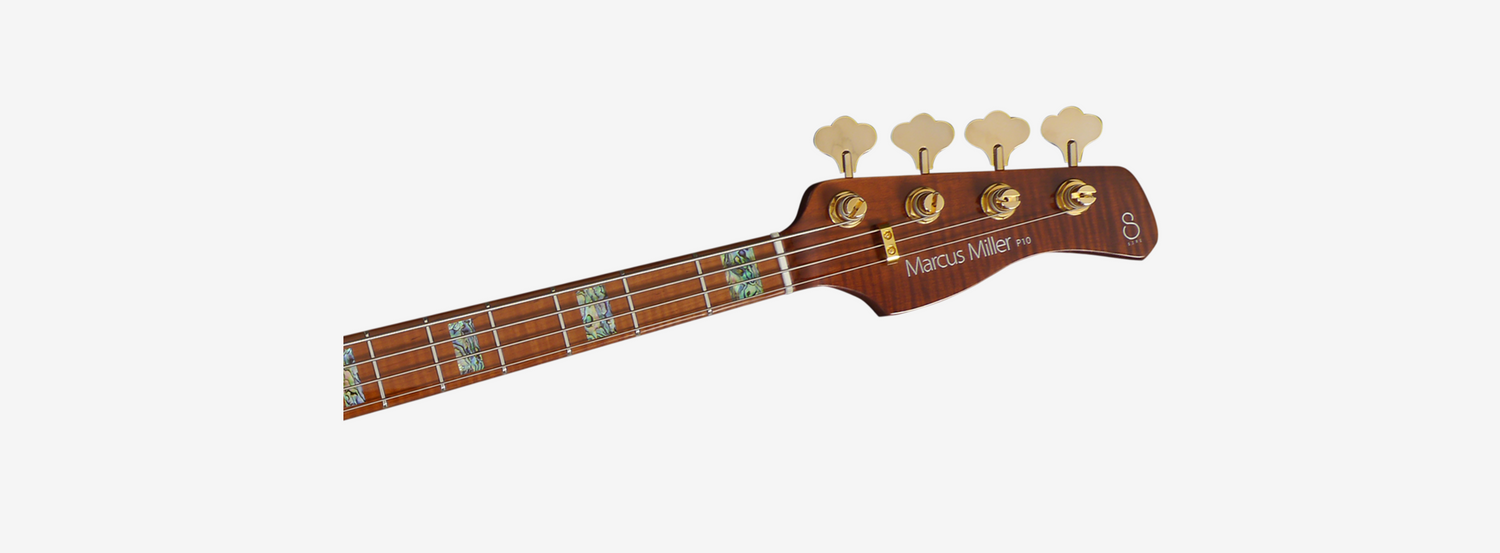

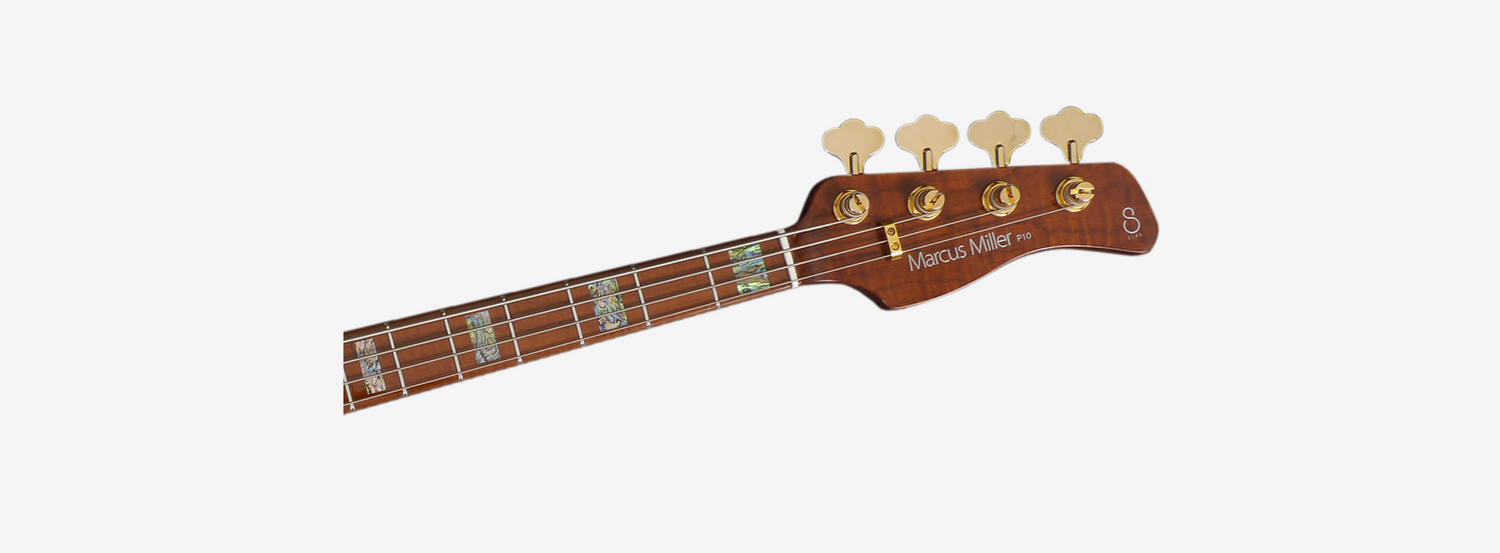

HIPSHOT USA ULTRALITE® BASS TUNING MACHINE

Adequately designed and manufactured tuners for quick and accurate tuning with aircraft grade aluminum housing to provide high durability in an extremely light package.

OFFICIAL SIRE HARD CASE

Comes included with the P10 DX, providing premium protection and stylish convenience for your instrument wherever you go.




P10dx CONTROL LAYOUT


1. Volume — Top Knob

Turn toward Open to increase the volume.
Turn toward Close to decrease the volume.
When turned fully in the Close direction, the volume will be muted.

2. Master Tone — Bottom Knob

Turn toward Close for a darker tone.
Turn toward Open for a brighter tone.

3. Pickup Balancer

The center position is the basic position. In this position, both the neck and bridge pickups are used equally.
Turn toward Neck to increase the neck pickup signal.
Turn toward Bridge to increase the bridge pickup signal.
When turned fully toward Neck, only the neck pickup is used.
When turned fully toward Bridge, only the bridge pickup is use.
Note: The following EQ controls work in Active Mode.

4. Treble

Turn toward Boost to increase the treble range.
Turn toward Cut to decrease the treble range.
The center position is the basic position.

5. Middle — Top Knob

Turn toward Boost to increase the middle range.
Turn toward Cut to decrease the middle range.
The center position is the basic position.

6. Middle Frequency — Bottom Knob

Use this knob to select the mid-frequency range affected by the Middle control.
Turning the knob changes the selected mid-frequency point.
The Middle Frequency control takes effect when the Middle control is boosted or cut.

7. Bass

Turn toward Boost to increase the bass range.
Turn toward Cut to decrease the bass range.
The center position is the basic position.

8. Active / Passive Switch

Use this switch to select between active and passive operation.
Set the switch to Active to use the onboard preamp and EQ controls.
Set the switch to Passive to bypass the active preamp and use a more natural passive sound.

Basic Use

For a balanced sound, set the Pickup Balancer in the center position and keep the EQ controls near the middle position.
To emphasize a brighter and tighter tone, turn the Pickup Balancer toward the bridge pickup and increase the Treble slightly.
To emphasize a warmer and fuller tone, turn the Pickup Balancer toward the neck pickup and increase the Bass slightly.
For more precise tone shaping, adjust the Middle Frequency first, then use the Middle control to cut or boost the selected frequency range.
Use Active mode when you want more control over the EQ.
Use Passive mode when you want a simpler and more natural tone.




BODY

Body Material: Alder + Solid Flame Maple Top
Body Shape: Sire P-Bass Style

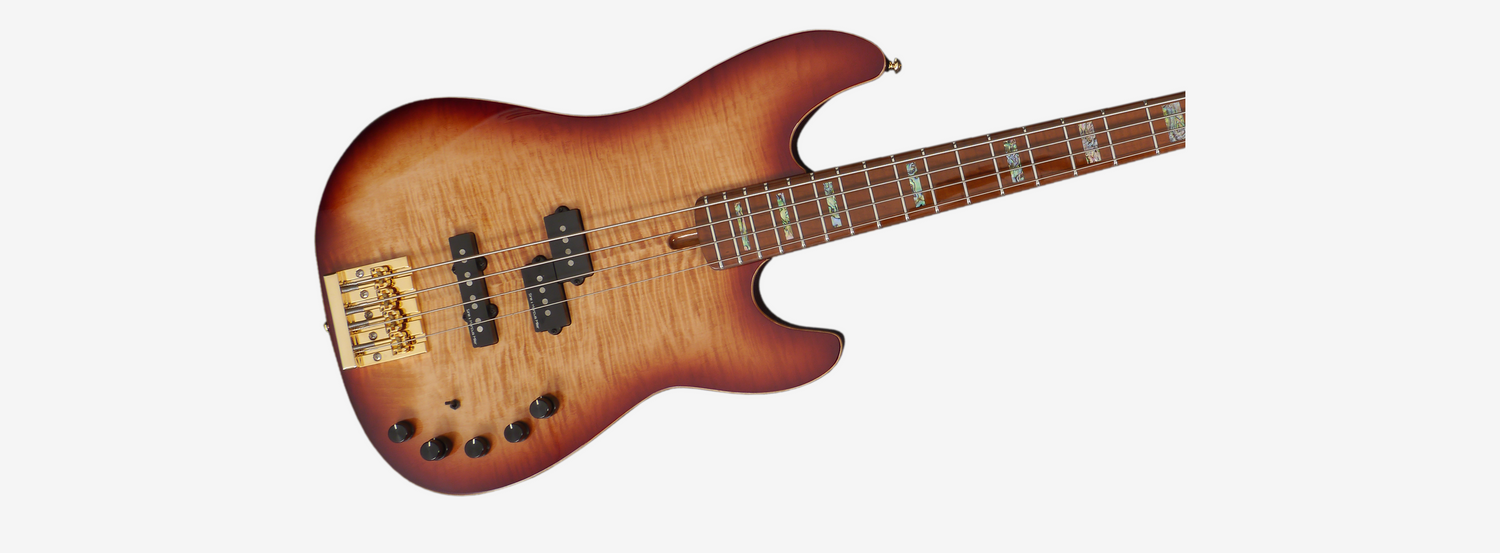

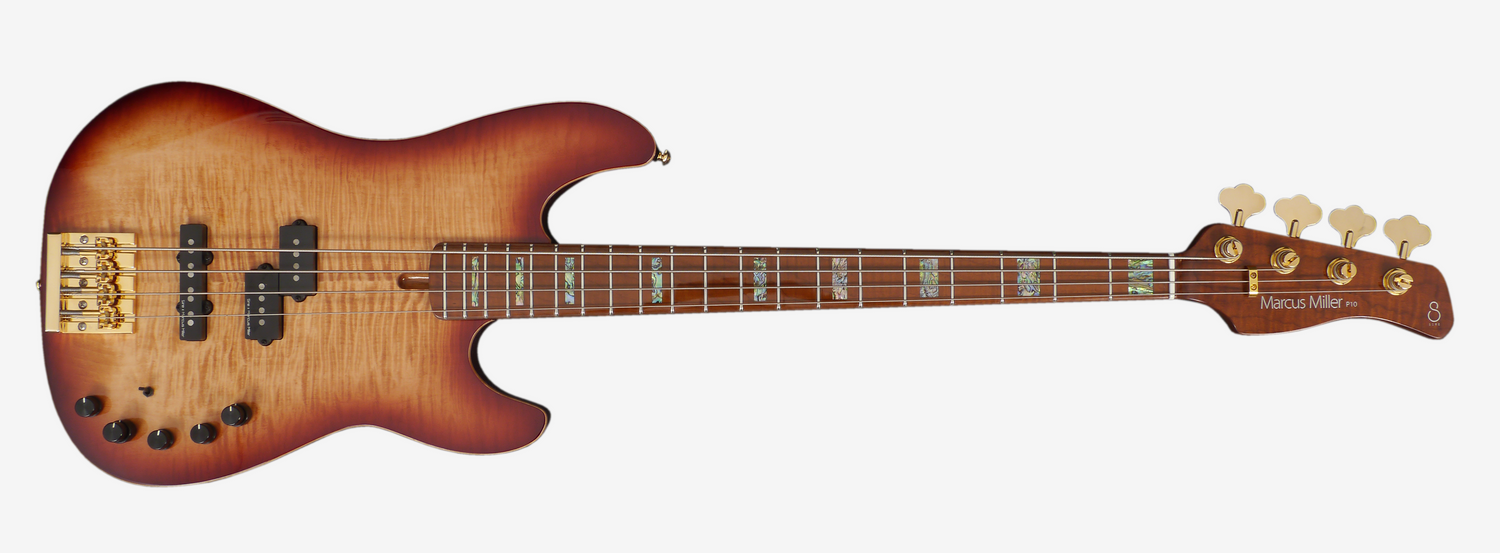

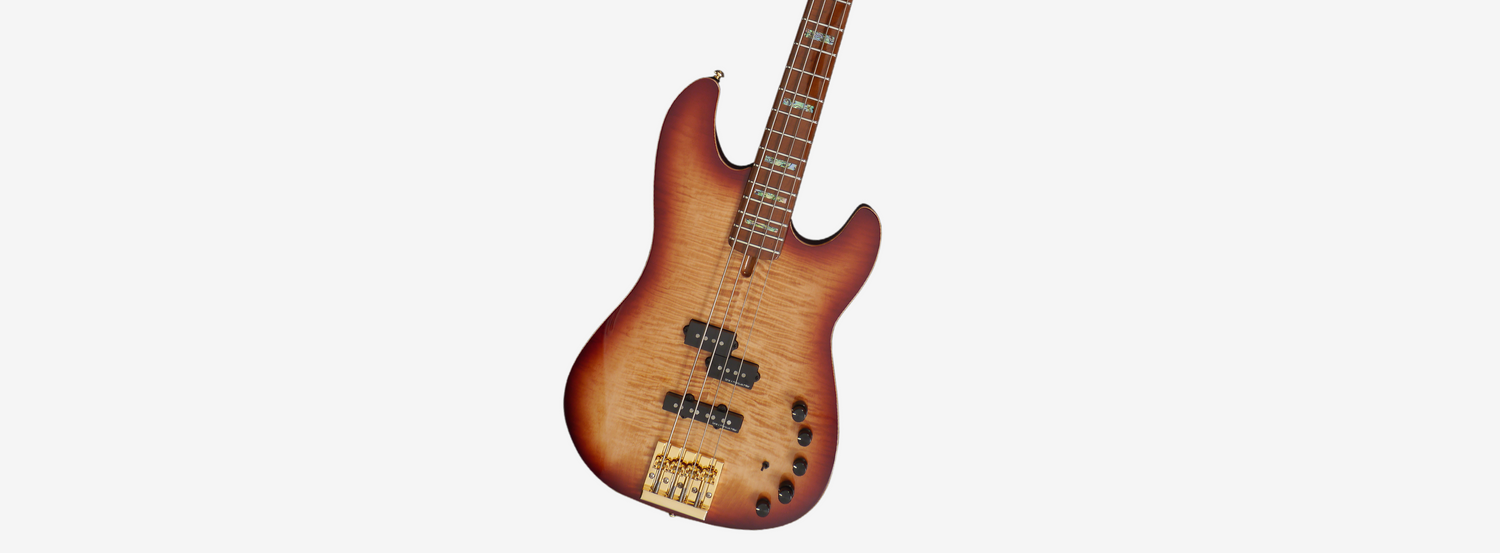

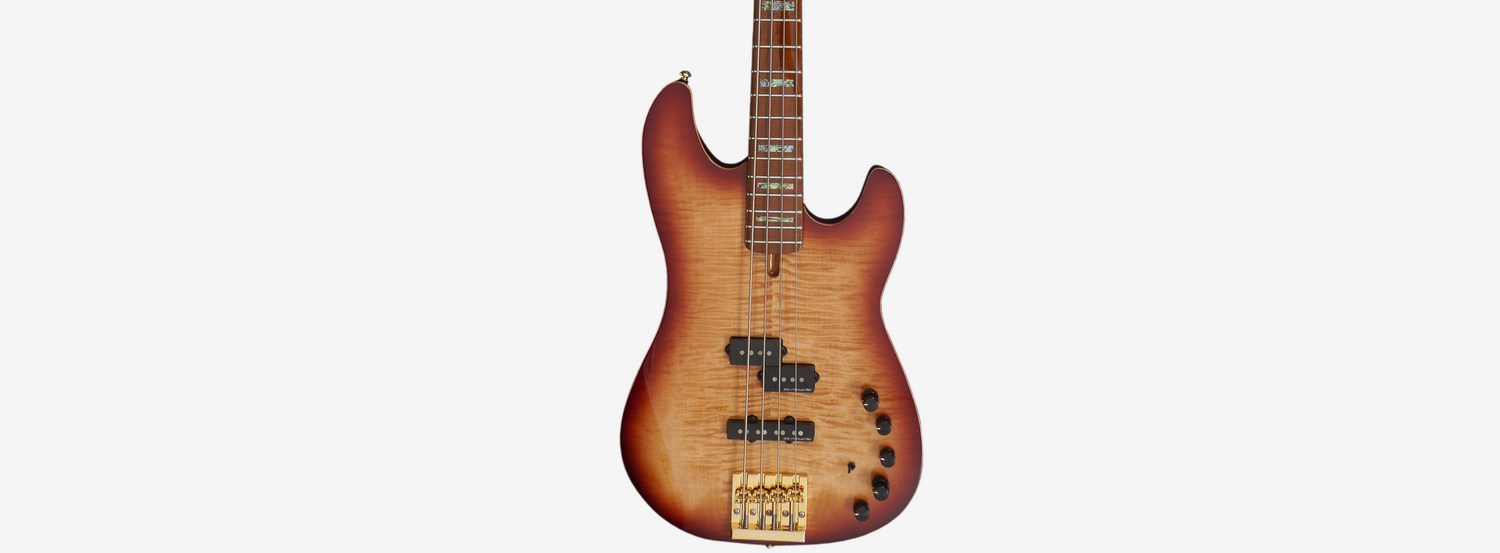

Body Color:  NT (Natural), TS (Tobacco Sunburst)




NECK

Neck Material: Roasted Flame Hard Maple
Neck Shape: C-Shape
Scale: 34"
Fingerboard Material: Roasted Flame Hard Maple, Edgeless™ (Rolled Fretboard Edges)
Fingerboard Radius: 9.5"
Frets: 2.4 Medium
String Nut: Bone Nut 38mm width
Inlay: Abalone Block
Neck Joint: Four Bolt Steel Square Plate




ELECTRONICS

Pickups: Marcus Premium PJ Revolution Set
Preamp: Marcus Heritage-3 with Middle Frequency Control
Controls: Volume / Tone(Dual Pot) | Pickup Blender | Treble | Middle / Middle Frequency(Dual Pot) | Bass, Mini Toggle(Active / Passive)
Knobs: Modern Black Aluminum




HARDWARE

Bridge: Hipshot Kickass™ Bass Bridge
String Spacing: 19mm
Tuning Gear: Hipshot USA Ultralite® Bass Tuning Machine
Hardware Finish: Gold
Pickguard: Transparent Pickguard
