Color – Natural
Hand & Fret

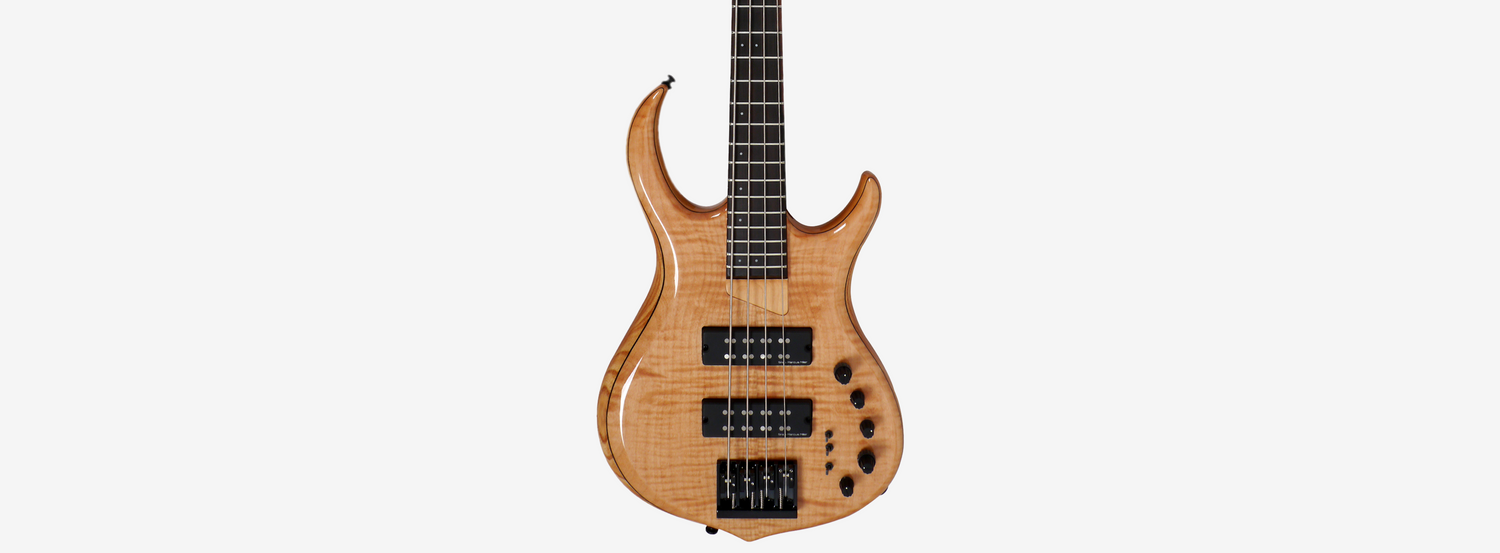

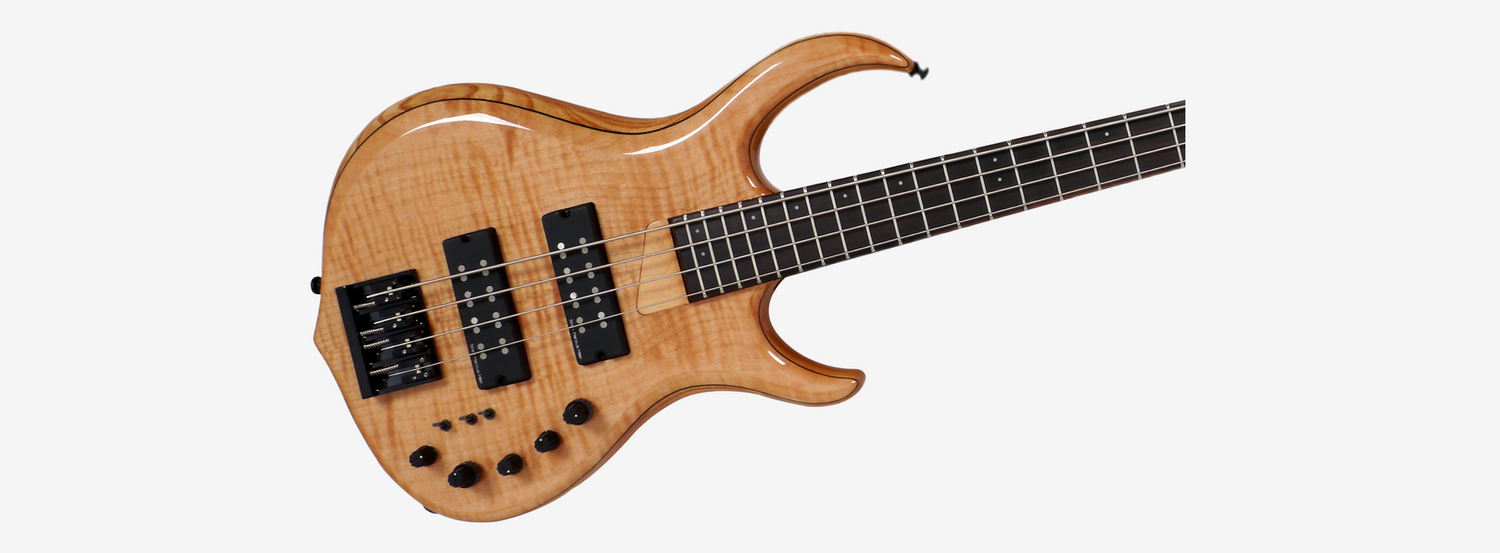

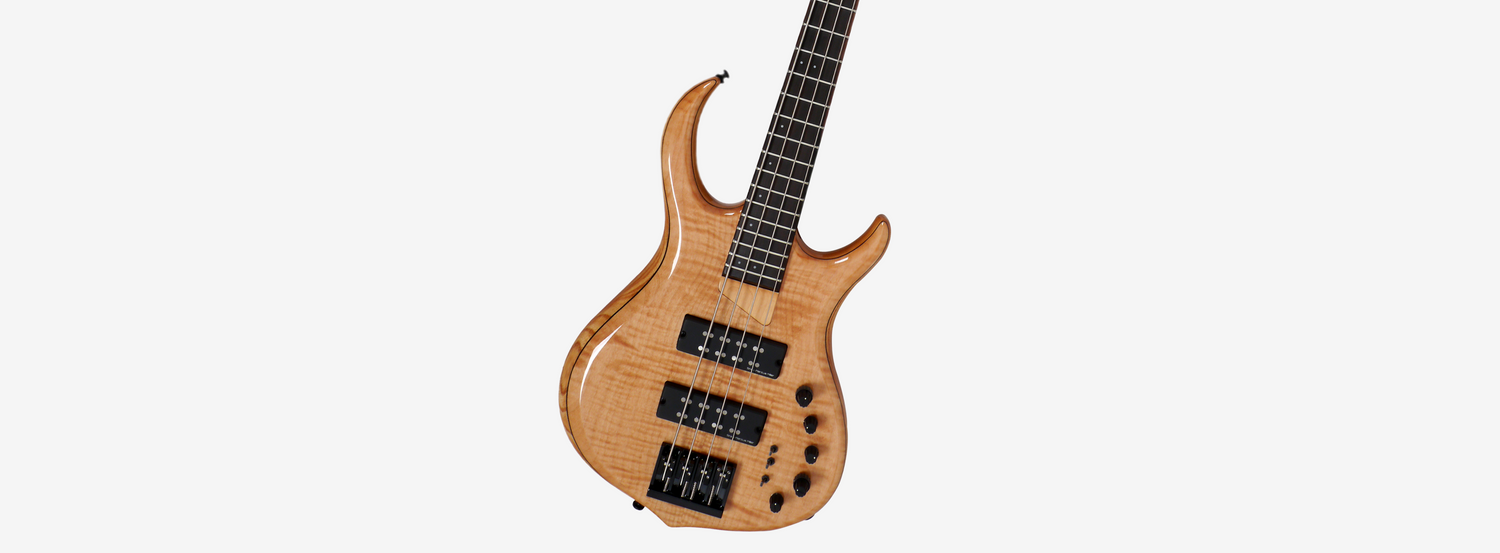

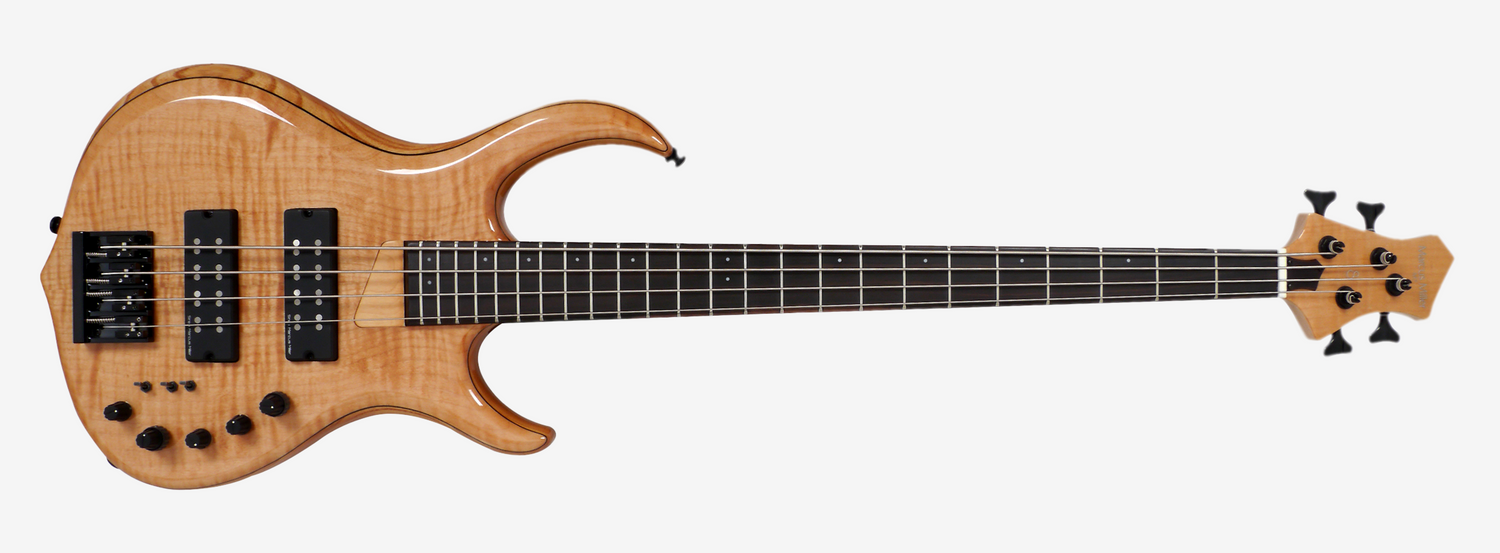

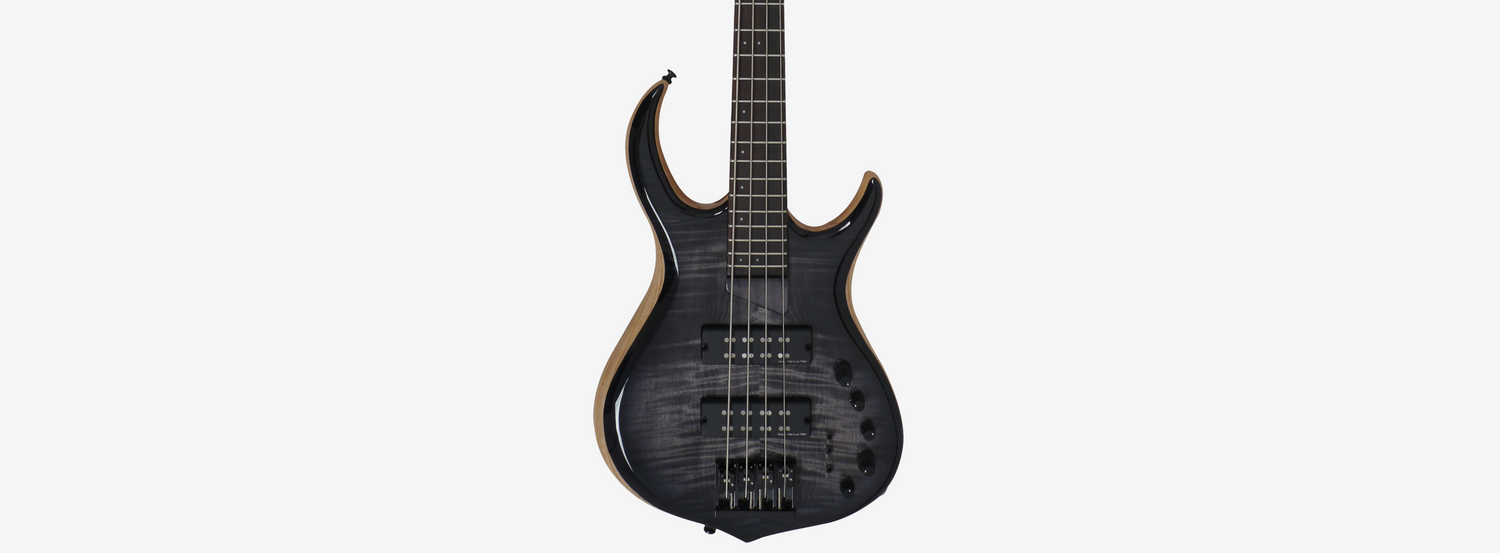

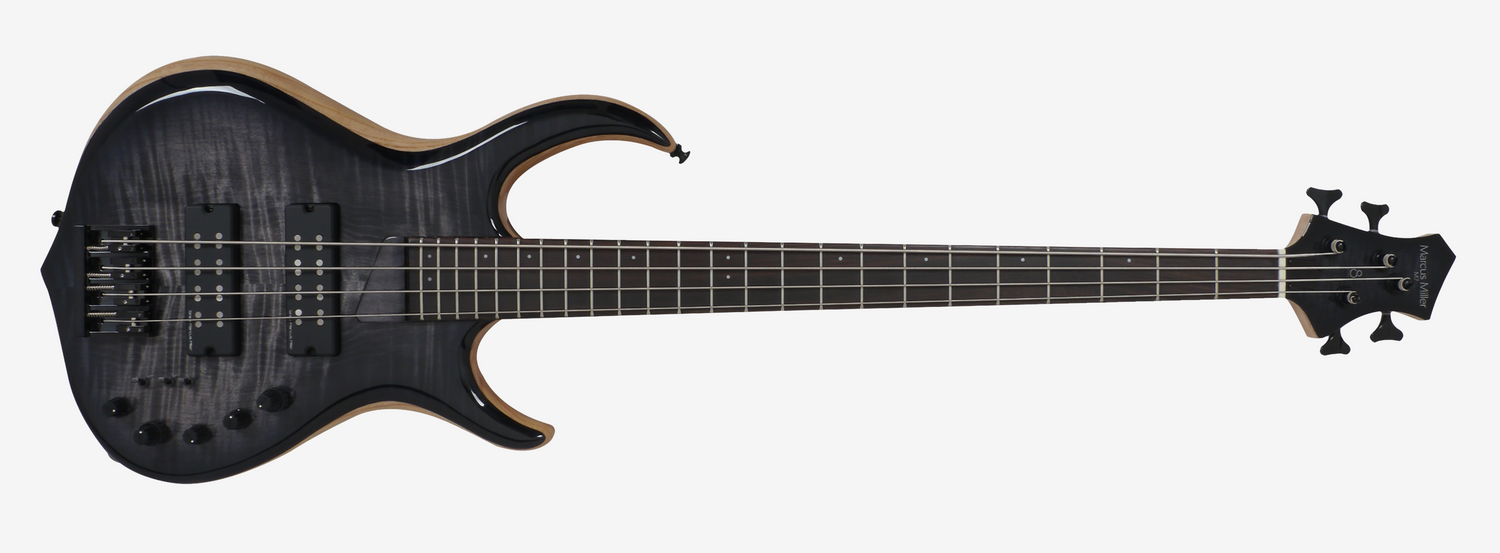

Sire Marcus Miller M7 Ash 4-String LH or FL

$1,299.00
$1,299.00

THE SIRE TOP OF THE LINE MODERN BASS

The Sire M7 offers powerful modern qualities from the inside out to match different playing styles. However, its major components are specially built for go-hard players.



MODERN BASS BODY

Contemporary bass shape made of Swamp Ash known to express fine-tuned quality build and sound in an instrument; topped with solid flamed Maple for a more luxurious finish.

MARCUS MILLER PURE-H REVOLUTION PICKUP

Pure and advanced humbucking pickup set that separates the noise to bring out the powertul bass sound.

MARCUS MILLER HERITAGE-3 PREAMP

Composed of a 3-band EQ and a switch allowing complete tonal control from the active or passive modes.



M7 CONTROL LAYOUT


1. Volume.

Controls the overall output. Turn toward Open to increase volume and toward Close to decrease it. Fully closed mutes the sound.

2. Master Tone

Adjusts brightness. Turn toward Open for a brighter tone and toward Close for a darker tone.

3. Pickup Balancer

The center position uses both pickups equally. Turn toward Neck for a warmer neck pickup sound or toward Bridge for a brighter bridge pickup sound.

4. EQ Controls

The Treble, Middle, Middle Frequency, and Bass controls work in Active Mode.

5. Treble

Boosts or cuts the high-frequency range.

6. Middle

Boosts or cuts the midrange.

7. Middle Frequency

Selects the mid-frequency range affected by the Middle control.

8. Bass

Boosts or cuts the low-frequency range.

9. Active / Passive Switch

Select Active to use the onboard preamp and EQ. Select Passive to bypass the preamp for a more natural passive sound.

10. Pickup Mode Switches

Choose between three pickup wiring modes:
• Parallel Humbucker – clear and balanced.
• Single Coil / Outer Coil – brighter and more focused.
• Series Humbucker – stronger, fuller, and higher output.

Basic Tone Tips

For a balanced sound, keep the Pickup Balancer and EQ controls near the center position.
For a brighter, tighter tone, blend toward the bridge pickup and slightly boost Treble.
For a warmer, fuller tone, blend toward the neck pickup and slightly boost Bass.
For more detailed tone shaping, adjust the Middle Frequency first, then boost or cut with the Middle control.




BODY

Body Material: North American Alder / Swamp Ash + Solid Flame Maple Top
Body Shape: Modern Bass Style

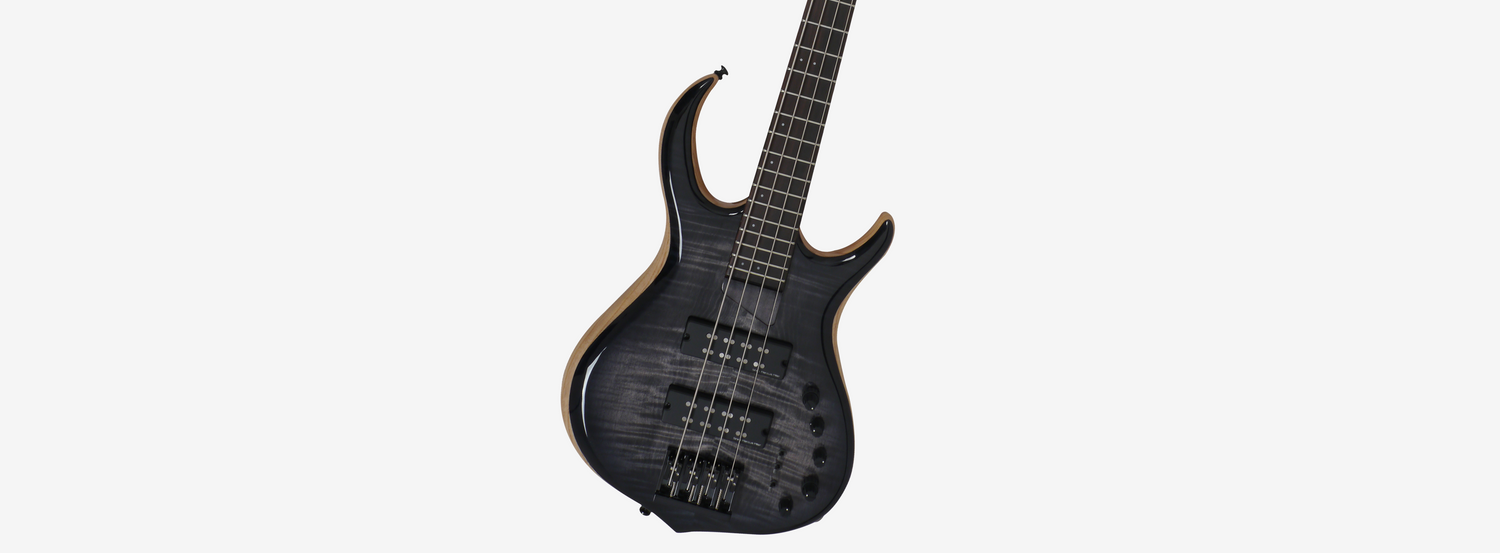

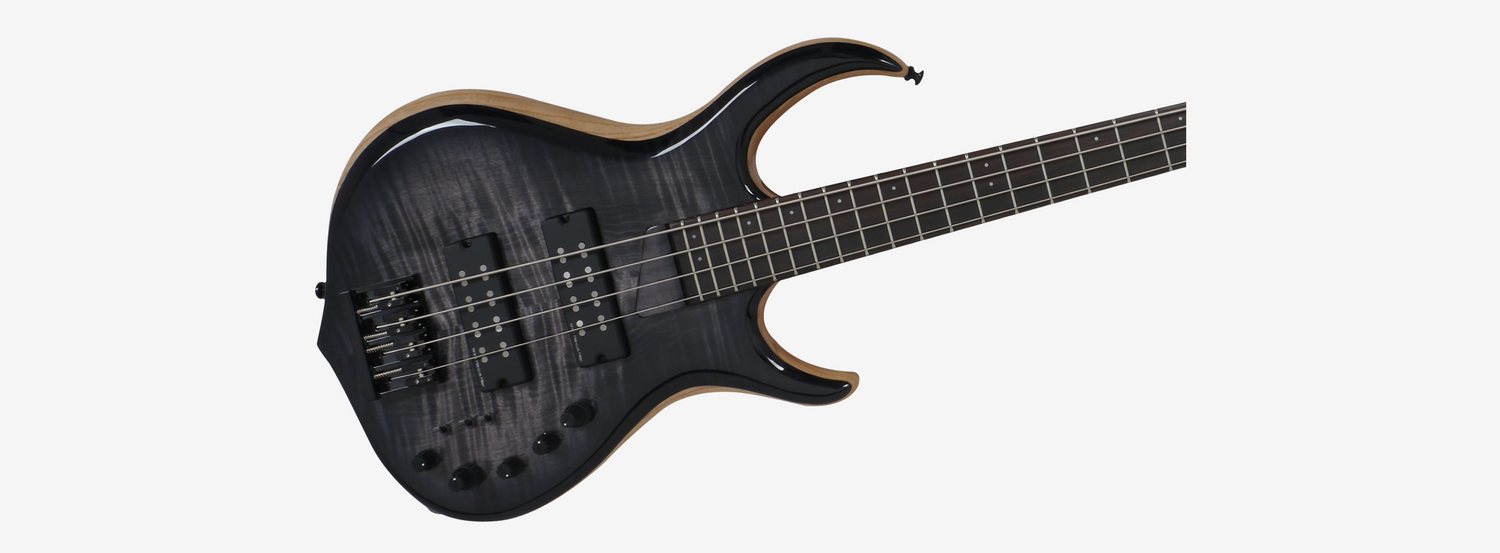

Body Color: NT (Natural), TBK (Transparent Black)

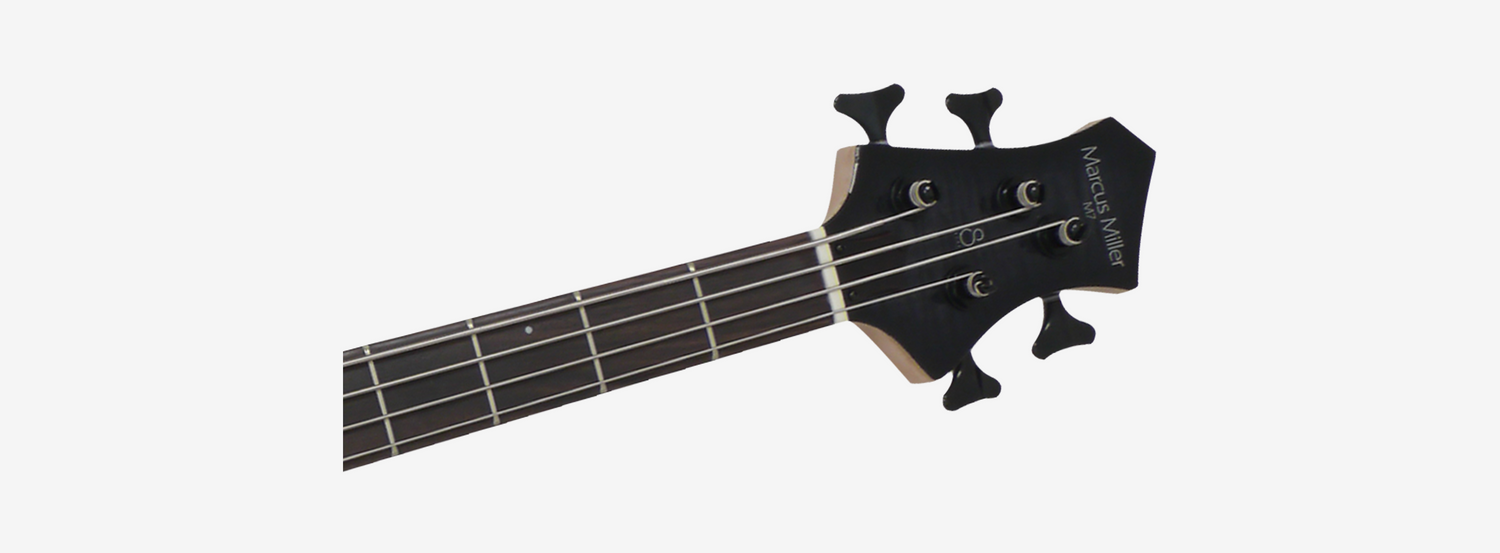

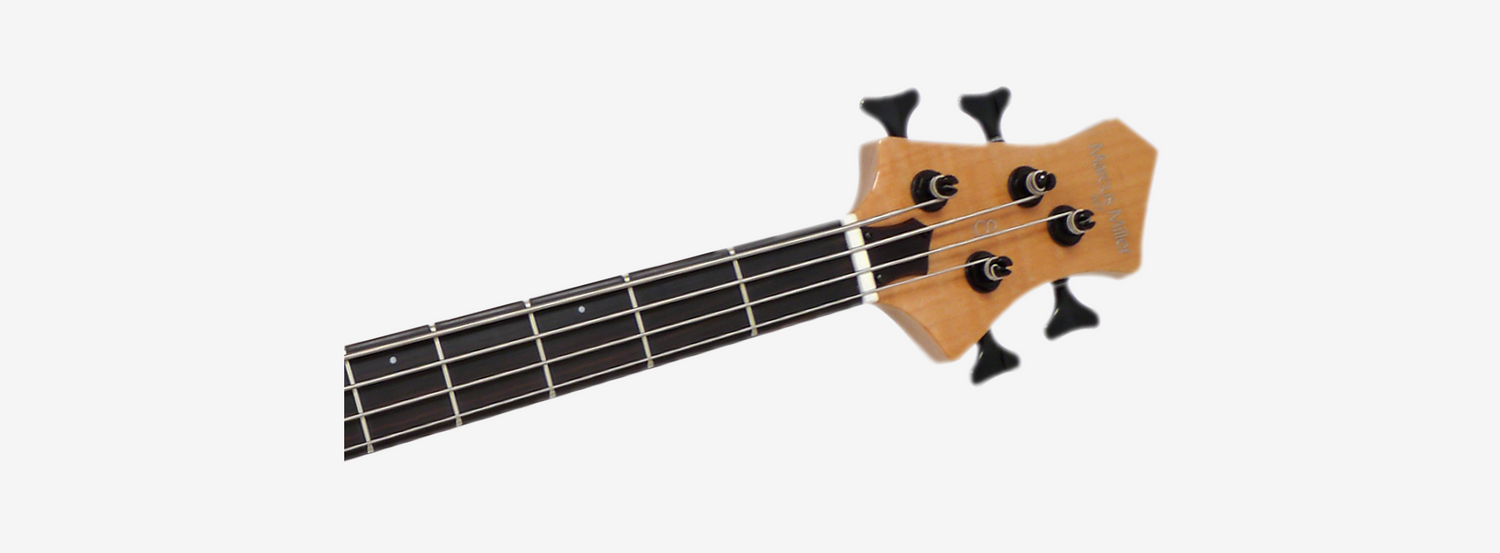

NECK

Neck Material: Hard Maple
Neck Shape: C-Shape
Scale: 34”-35“(For 5 string 35” for clear low B)
Fingerboard Material: Ebony, Edgeless™ (Rolled Fretboard Edges)
Fingerboard Radius: 12”
Frets: 24 Medium
String Nut: Natural Bone 38mm width
Bindning: None
Inlay: White Pearl Dot
Neck Joint: Four Bolt Individual Bushing Type




ELECTRONICS

Pickups: Marcus Pure-H Revolution Set
Preamp: Marcus Miller Heritage-3 with Middle Frequency Control
Controls: Volume / Tone(Dual Pot) | Pickup Blender | Treble | Middle / Middle Frequency(Dual Pot) | Bass, Mini Toggle(Active / Passive) | 2 Mini Toggle for Pickup: Series / Split / Parallel
Knobs: Modern Black Aluminum



HARDWARE

Bridge: Marcus Miller Heavy Mass Custom
String Spacing: 20mm
Tuning Gear: Sire Diecasting Gear
Hardware Finish: Black
Pickguard: None
